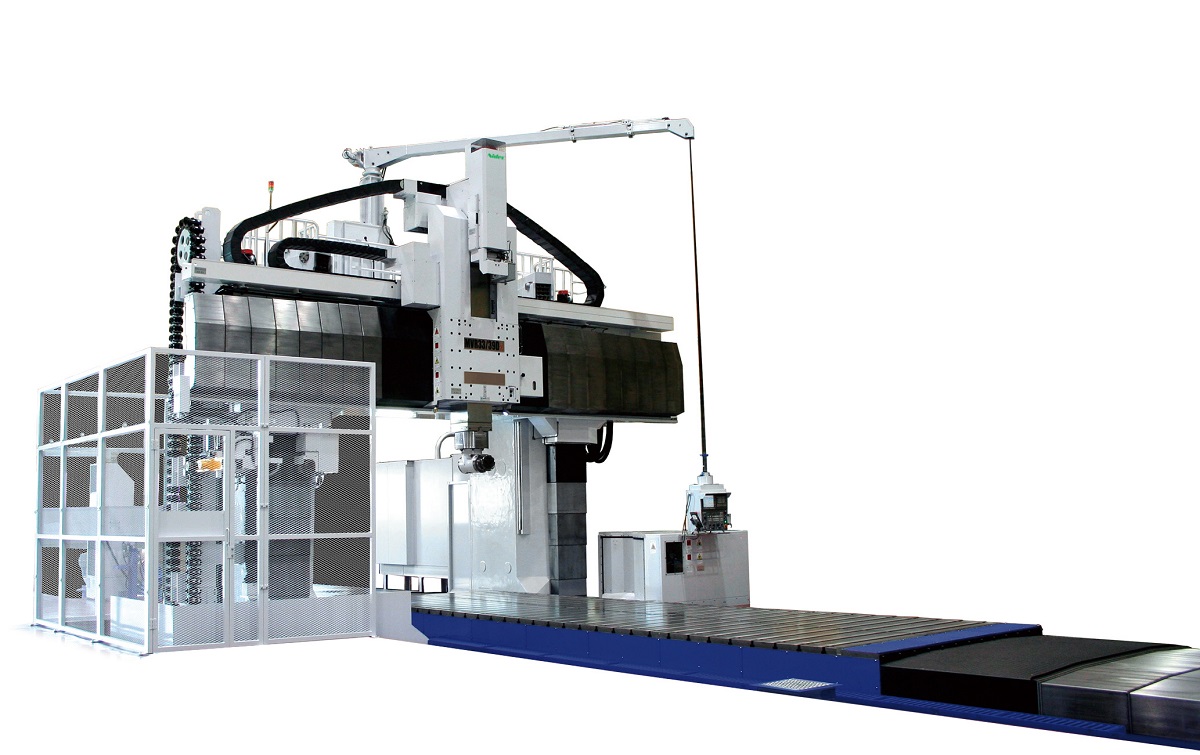

For the largest and most demanding workpieces, the Nidec MVR-Dx Series is top of its class in cutting capability, bringing the power and speed required to handle such workpieces. This vertical precision, five-face milling machine offers box guideway construction in Z and W-axes and hydrostatic box guideways in X-axis. The strong Z-axis RAM measures 15.7 square with rigidity to handle the cutting loads of our 74-horsepower main spindle motor. This machines primary components are all cast iron construction. With fast tool and attachment changes, the MVR-Dx offers efficiency, power and speed to process your parts. This machine is backed by Nidec Machine Tool America LLC»s team of U.S. based, factory trained technicians.
Технические характеристики
Specifications
MVR-Dx Models
- MVR28/34Dx
Specification Detail X-Axis Travel 157.6′ 196.9′ 236.2′ Y-Axis Travel 133.9′ Z-Axis Travel 37.4′ W-Axis Travel (RAM) 39.4′ Distance Between Columns 110.2′ Table Width 78.7′ Table Length 157.5′ 196.9′ 236.2′ RAM Size 15.7′ Square RAM Spindle Diameter 5.12′ (opt. 5.90′) Spindle RPM 3,750 Spindle Taper CAT-50 Spindle Horsepower 60 HP ATC Capacity 60 (Opt. 80, 100, 120, 160, 200) - MVVR33/39Dx
Specification Detail X-Axis Travel 157.6′ 196.9′ 236.2′ Y-Axis Travel 153.5′ Z-Axis Travel 47.2′ W-Axis Travel (RAM) 39.4′ Distance Between Columns 129.9′ Table Width 98.4′ Table Length 157.5′ 196.9′ 236.2′ RAM Size 15.7′ Square RAM Spindle Diameter 5.12′ (opt. 5.90′) Spindle RPM 3,750 Spindle Taper CAT-50 Spindle Horsepower 60 HP ATC Capacity 60 (Opt. 80, 100, 120, 160, 200) - MVR38/44Dx
Specification Detail X-Axis Travel 196.9′ ~ 236.2′ Y-Axis Travel 173.2′ Z-Axis Travel 76.8′ W-Axis Travel (RAM) 39.4′ Distance Between Columns 149.6′ Table Width 118.1′ Table Length 196.9′ ~ 236.2′ RAM Size 15.7′ Square RAM Spindle Diameter 5.12′ (opt. 5.90′) Spindle RPM 3,750 Spindle Taper CAT-50 Spindle Horsepower 60 HP ATC Capacity 60 (Opt. 80, 100, 120, 160, 200) - MVR43/49Dx
Specification Detail X-Axis Travel 196.9′ ~ 236.2′ Y-Axis Travel 192.9′ Z-Axis Travel 76.8′ W-Axis Travel (RAM) 39.4′ Distance Between Columns 169.3′ Table Width 137.8′ Table Length 196.9′ ~ 236.2′ RAM Size 15.7′ Square RAM Spindle Diameter 5.12′ (opt. 5.90′) Spindle RPM 3,750 Spindle Taper CAT-50 Spindle Horsepower 60 HP ATC Capacity 60 (Opt. 80, 100, 120, 160, 200)
