Additional Features:
AC Output Voltage
- Range: 100V to 5000V AC
- Resolution: 10Volts/step
- Frequency: 50/60 Hz selectable
- Frequency Accuracy: 100ppm
- Waveform: Sinusoidal
- Regulation: +/-(1% of setting +5V)
Voltage Display
- Accuracy: +/-(1% of reading + 5V)
- Resolution: 1Volt
AC Current Display
- Total current Range: 0.001 to 15mA AC
- Resolution: 1μA
- Accuracy: +/-(1.5% of reading + 5cnt)
High/Low Limit Test
- 1μA to 15mA AC
- Accuracy: +/-(1% of limit + 5cnt)
- Low limit can be turned OFF
DC Output Voltage
- Range: 100V to 6000V DC
- Resolution: 10Volts/step
- Regulation: +/-(1% of setting +5V)
Voltage Display
- Accuracy: +/-(1% of reading + 5V)
- Resolution: 1Volt
DC Current Display
- Range: 1μA to 7.5mA DC
- Resolution: 1μA
- Accuracy: +/-(1.5% of reading + 5cnt)
High/Low Limit Test
- 1μA to 7.5mA DC
- Low limit can be turned OFF
Charging Current
- 7.5mA max
Insulation Resistance
- Range: 10MW — 10GW
- +/- (10% of reading + 10 cts), >,500V
- +/- (15% of reading + 10 cts), <,500V
- Voltage Range: 50V to 1000V DC
- Accuracy: +/-(1% of setting +5V)
High/Low Limit Test
- 10MW — 10GW
- High limit can be turned OFF
Charging Current
- 7.5mA max
Common Features
- Arc Detection: Arc Level: >,1mA — 15mA or OFF
- Arc Duration: >, 10μs
- Indication: Pass/fail lights, audible sound
- Buzzer Level: On / Off
- Time: Ramp: 0.1 to 999s (+/-20ms), Test: 0.1 to 999s (+/-20ms) and Continuous
- Quick Discharge: Discharge of voltage across DUT back through the HV transformer
- Ground Continuity: High Limit: 1W
- Accuracy: +/-0.1W
- Test Current: 100 mA DC
Remote Control
- Inputs: Start, Stop and Interlock
- Characteristics: 24V Active Low,
- Pulse Width: >,1ms.
- Outputs: Pass/Fail/Under Test
- Characteristics: Dry Contact relay
- Electrical Characteristics: 120V 100mA max.
- Logic: Closed if True
- Connector: 9 pin Male D-Series Connector
Test Setups
- 40 Memory Locations with 2 Steps each
- 80 Memory Locations with 1 Step each
Connectors
- Front Connection (HV and Ground)
- HV Socket
- Ground (Binding Post)
- Ground Cont. (Banana Socket)
Front Panel Lockout
- Key press with or without memory recall
Miscellaneous
- Continuous Voltage on Fail
- Zero Offset
- Dimensions: (w x h x d):11x4x14in (270x100x350mm)
- Weight: 21 lbs. (10kg) Shipping: 28 lbs. (13kg)
Environmental
- Meets MIL-T-28800E, Type 3, Class 5
- Operating: 0° to + 40° C
- Humidity: <,75%
- Storage: — 10° to + 60° C
- Warm-up Time: 1minute
Power
- 90-130V AC, 50 or 60Hz, 200-250V AC, 300W max
Applications
- Production Testing of Appliances, Instruments and Information Technology Equipment in Accordance with UL, IEC, TÜV and Other Standards such as EN60335, EN60950, EN61010, CSA C22.2 No. 1010.1, UL3111 and UL1950
- Transformer Electrical Safety Testing
- Electric Motor Safety Testing
- Variety of Electronic Components
- Testing Electronic Components

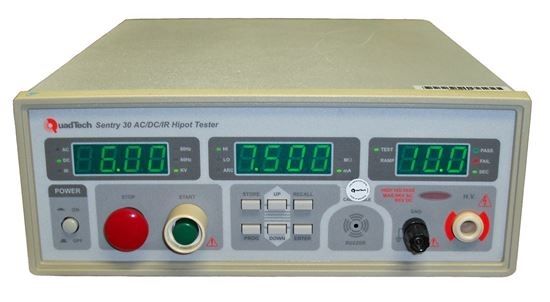

The QuadTech Sentry 30 combines both AC and DC Hipot with insulation resistance (IR) measurements into a single compact unit. The front panel of the Sentry makes it easy to operate. Digital display and user-friendly control allows test parameters and limits to be set easily without the high voltage activated.
The Sentry Series of electrical safety testers are advanced digital hipots with load and line regulation to ensure measurement integrity. Multistep capability allows the user to perform up to two tests in a sequence such as AC hipot followed by IR.
The Sentry 30 AC/DC/IR Hipot Tester has all of the features of the Sentry 10/15 and 20/25 plus measurement of insulation resistance. The IR measurement range is from 10MW to 10GW with test voltages from 50 to 1000V DC.
