Description

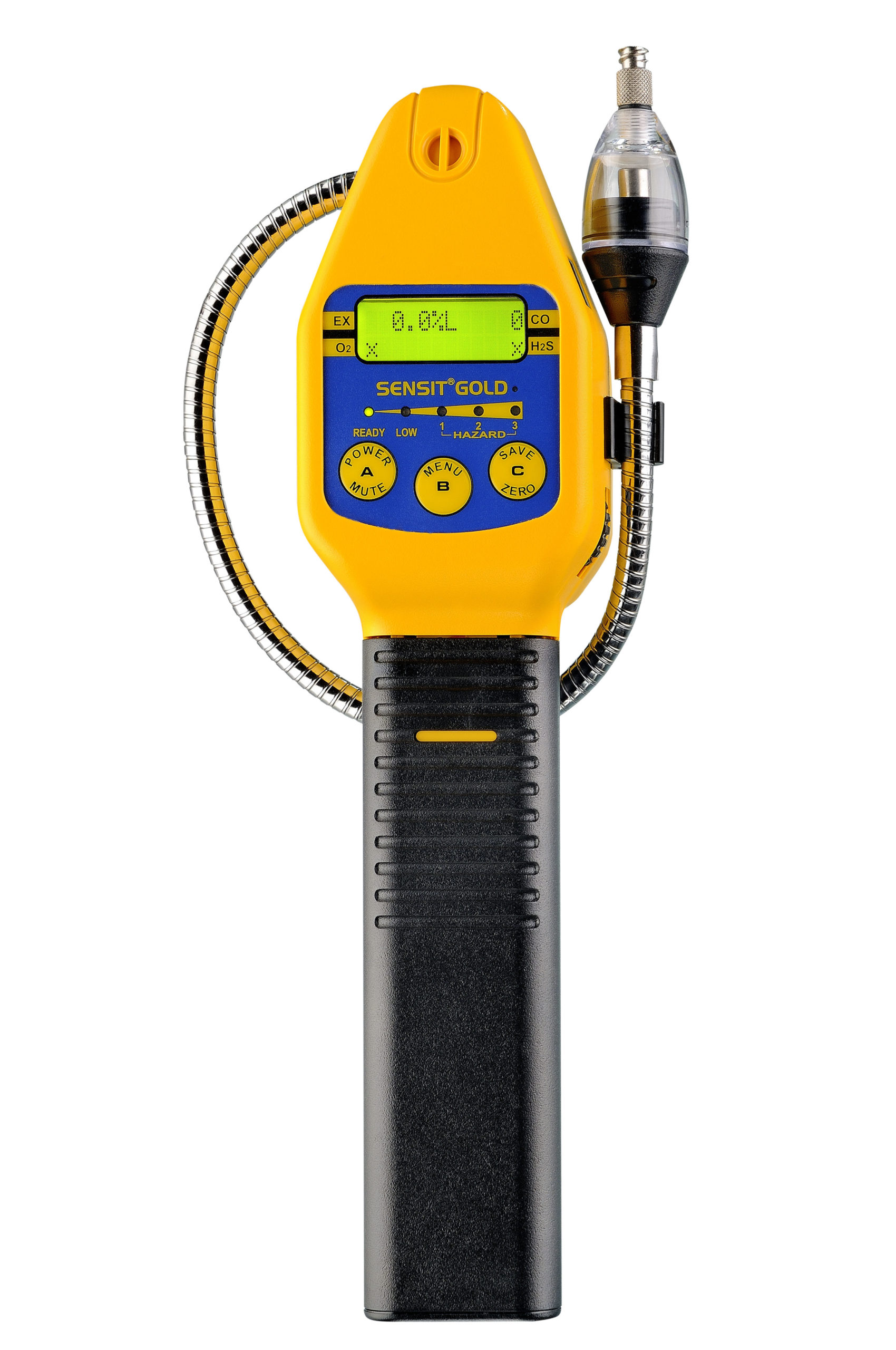

SENSIT® GOLD is a highly accurate handheld gas leak detector and multi-gas constrained area sensor designed to be easy to use and simple to operate.
The SENSIT® GOLD gas leak detection instrument is an excellent device for completing gas investigations. The SENSIT® GOLD LEL sensor is designed to discover the origin of combustible gas leaks quickly. Extra sensors offer the user safety from dangerous gas conditions.
Professionals working in hazardous gas environments rely on the SENSIT® GOLD every day to ensure safe working conditions while obtaining accurate gas readings.
Applications
- Combustible Gas Leak Detection
- Gas Leak Survey
- Underground Leak Pinpointing
- Carbon Monoxide Investigations
- Confined Space Monitoring
- Combustible Gas Measurements
- Pipeline Purging
- Method 21 Emissions Testing
Partial List of Gases Sensed
- Butane
- Carbon Monoxide
- Gasoline
- Hydrogen Sulfide
- Methane
- Natural Gas
- Oxygen
- Propane
Технические характеристики
Specs
PRODUCT SPECIFICATIONS
Size: 11.5 x 3 x 2.32 (29.2 x 7.6 x 5.9 cm)
Weight: 1.2 lb. (0.5 kg)
Operational Temp: 0 to 120 F (-17.78 to 48.9 C)
Battery Life: Alkaline: Approximately 12 hrs. Continuous
SENSOR SPECIFICATIONS
| TYPE | RESOLUTION | RANGE | ACCURACY |
| LEAK (CSA) | N/A | 50-50,000 ppm | N/A |
| LEAK (UL) | N/A | 10-50,000 ppm | N/A |
| PPM* (CSA) | 1 or 10 ppm | 0-2,000 ppm | ±,10% |
| LEL | 0.1% up to 2% | 0-100% LEL | ±,10% |
| O2 | 0.1% | 0-25% | ±,.0.2% or 10%** |
| CO | 1 ppm | 0-2000 ppm | ±,.5 ppm or 5%** |
| H2S | 1 ppm | 0-100 ppm | ±,2 ppm or 5%** |
| HCN | 1 ppm | 0-30 ppm | ±,1 ppm or 2.5%** |
*PPM Optional ** Whichever is greater
