Description

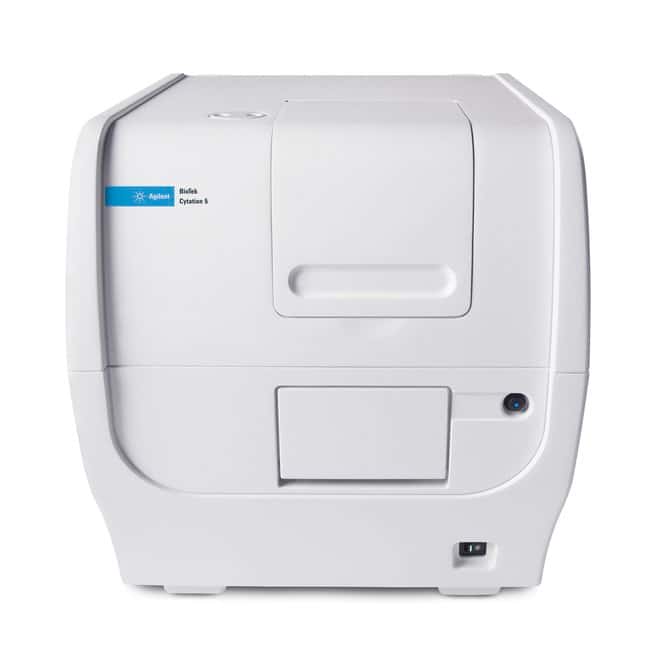

Cytation 5 combines automated microscopy and conventional microplate detection in a configurable, upgradable platform. The microscopy module offers up to 60x magnification in fluorescence, brightfield, high contrast brightfield, color brightfield, and phase contrast to address many applications and workflows
The multi-mode detection modules include filter- and monochromator-based fluorescence detection, luminescence, and UV-Vis absorbance detection. Gen5 software provides complete control over all imaging and data capture, plus powerful image and data analysis.
Технические характеристики
| Type | Cell Imaging Only Microplate Reader |
| Camera | Sony CMOS, 16-bit Gray Scale, Standard or WFOV |
| Dynamic Range | Absorbance: 0 to 4 OD, Fluorescence Intensity: 7 decades, Luminesence: >,6 decades |
| Contrast Methods | Fluorescence, phase contrast, brightfield, high contrast brightfield, color brightfield and phase contrast |
| Objectives | 1.25x, 2.5x (2.25x eff), 2.5x (2.75x eff), 4x, 10x, 20x, 40x, 60x |
| Temperature Range (Metric) | 4-Zone incubation to 65°C with Condensation Control (±0.2°C at 37°C) |
| Depth (Metric) | 51.4 cm |
| Height (Metric) | 44.5 cm |
| Weight (Metric) | 36.3 kg |
| Width (Metric) | 41.6 cm |
| Wattage | 250 W max. |
