Счетчики набора номера

Счетчик часового типа Mitutoyo оснащен встроенным циферблатным индикатором и выдвижной пяткой для быстрого сравнения, проверки GO/NG для множества приложений.

Доставка импортных компонентов по России от 3х недель транспортными компаниями СДЭК, Деловые Линии, Major Express.

Оплата физическими и юридическими лицами безналичным расчетом.

Цена может измениться после запроса у поставщика!

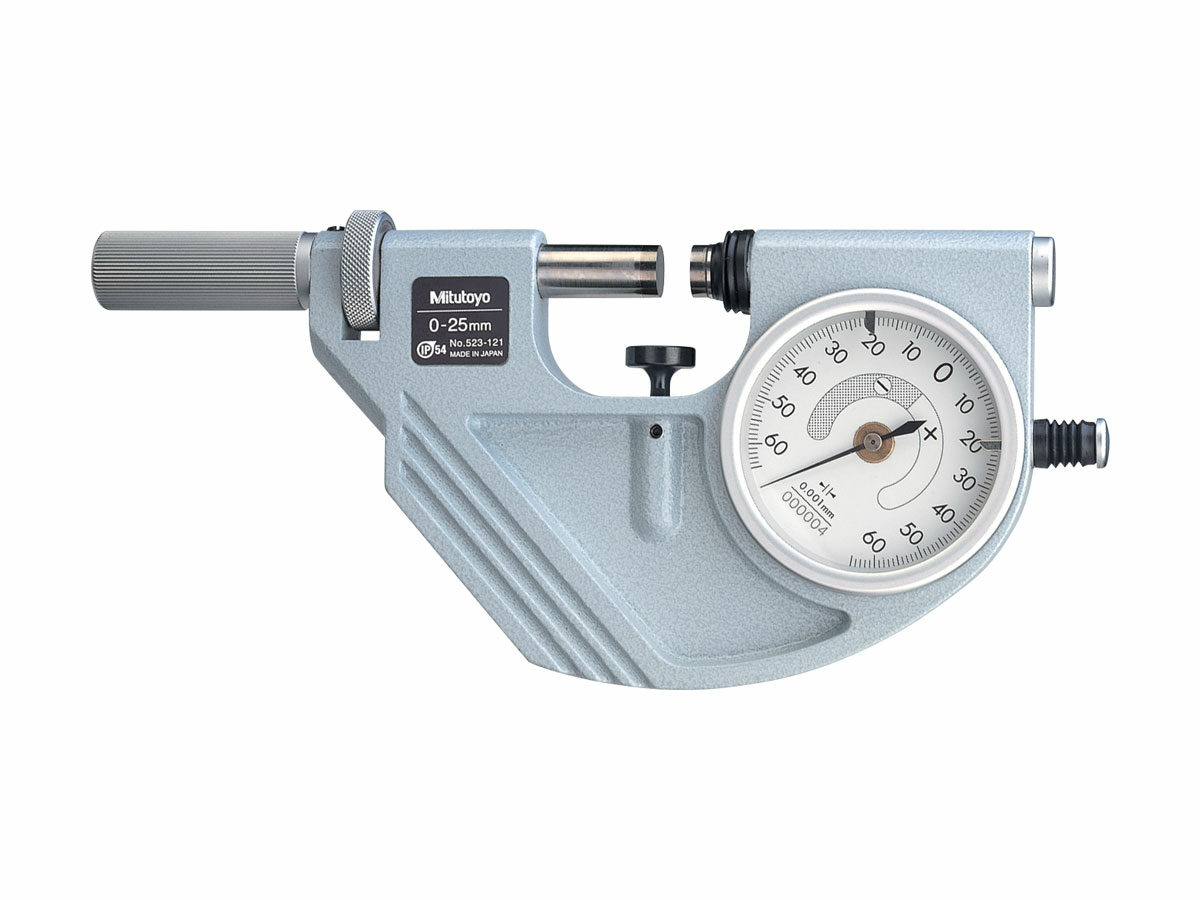

The Mitutoyo dial snap meter and dial indicator are manufactured in our factory in Japan with the same durability and precision as our micrometers. The spindle, anvil and frame are constructed of hardened steel to resist flexing so results are more accurate. The anvil trigger has a balanced spring and operates easily with a button on the anvil side of the frame. The retractable anvil allows for faster workpiece throughput without sacrificing accuracy.

Available in Metric and Inch models
Dial indicator for GO/NO-GO tolerance inspection is highly accurate and easy to read
Carbide facing on the spindle and anvil resists wear to keep surfaces flatter with longer accuracy
Satin chrome finish on the thimble and sleeve resists rust and reduces glare
Supplied in fitted plastic case
IP54 protection resists debris, dust and water

Order No.:	Product Image:	Units:	Range:	Dial indication accuracy:	Graduation:	Mass:	Flatness:	Parallelism:	Dial reading:	Indicating Range:	Indication Repeatability:

Order No.:

523-121		Metric	0-25mm	1µm	0.001mm	710g	0.3µm	0.6µm or less	0.001mm	±0.06mm	0.4µm
523-122	—	Metric	25-50mm	1µm	0.001mm	810g	0.3µm	0.6µm or less	0.001mm	±0.06mm	0.4µm
523-123	—	Metric	50-75mm	1µm	0.001mm	920g	0.3µm	1µm or less	0.001mm	±0.06mm	0.4µm
523-124	—	Metric	75-100mm	1µm	0.001mm	1050g	0.3µm	1µm or less	0.001mm	±0.06mm	0.4µm
523-131	—	Inch	0-1″	0.00005″	0.00005″	710g	—	0.000024″ or less	0.00005″	±0.0023″	0.00002″
523-132	—	Inch	1-2″	0.00005″	0.00005″	810g	—	0.000024″ or less	0.00005″	±0.0023″	0.00002″
523-133	—	Inch	2-3″	0.00005″	0.00005″	920g	—	0.000040″ or less	0.00005″	±0.0023″	0.00002″
523-134	—	Inch	3-4″	0.00005″	0.00005″	1050g	—	0.000040″ or less	0.00005″	±0.0023″	0.00002″

523-121
523-122
523-123
523-124
523-131
523-132
523-133
523-134

Технические характеристики

Technology:	Mechanical
IP Rating:	IP54
Measuring Force:	5-10N
Measuring Faces:	Carbide tipped
