Description

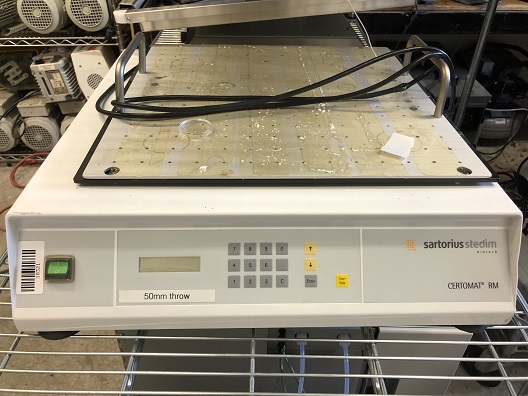

The CERTOMAT® RM is a powerful and robust orbital benchtop shaker for the universal use in the various tasks of biological and chemical laboratories. Its compact design and its construction features allow its placement in incubators, conditioning cabinets or in shelves of a rack. The product also features an adjustable counter weight for mass balancing of the different loads applied, for optimum compensation (minimization) of vibrations caused by different loads driven at different shaking frequencies, which can be transmitted to the shaker unit and woking place.
Specification:
- Cabinet size (W x H x D): 511 x 160 x 545 mm
- Weight (without tray): 46 kg
- Material: sheet steel case with acidproof varnish
- Max. load: depending on tray and mounting system applied
- Connector: Home-Office grounded plug, separate cable of about 3 m
- Mains supply: 230 V / 50 – 60 Hz or 115 V / 50 – 60 Hz
- Power consumption: 0.8 mA at 230 V or 1.6 A at 115 V
- Fuses: fuse links 2 x T 1 A (230 V) or 2 x T 2 A (115 V)
- Shaking frequencies: 40… 400 rpm
- Orbital motion: 25 mm or 50 mm, depending on version “as delivered“
- Rotation speed accuracy: max. Deviation ±1% from max setting
- Timer operation: 00:01 [hrs:min] – 98:59 [hrs:min] , 99:59 [hrs:min] continuous operation
- Ambient temperature: +10 … +60 degree C
- Ambient humidity: 10… 90%, not condensing
