Description
Visual pointer
- Designed with the visual pointer on precise positioning system, easy to adjust the sample to the target angle, reducing trimming and sample waste.
- Adjust multiple devices to the same angle easily and quickly.
The side knobs
- Integrated with the machine, ergonomic design, make
- operation more comfortable and coordinated.
- The sample feeding speed can be adjusted freely between
- 0-1800μm/s, more choice and more efficient.
- Durable military-grade devices, service life is more than 20 million times.
Automatic section
- It is stable and maintains slice consistency.
- No extra skills required, easy to complete the operation.
- Some specimens such as embryos and brains need to be cut for hundreds of pieces. It is hard for you, but easy for automatic section.
Easily removable waste tray
- With magnetic function, easy to disassemble and install.
- Special coating materials tray, easy to clean up, shorten the cleaning time to a few seconds.

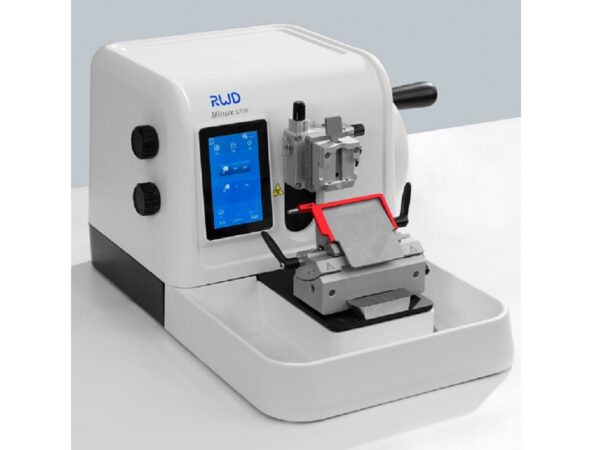

Technical Specifications: S700 Semi-Auto
- Section thickness setting range: 0.50 – 100 µm: Yes
- Trimming section thickness setting range: 1 – 800 µm: Yes
- Electric sectioning speed: 0-1800µm: Yes
- Specimen retraction: 0-250µm: Yes
- Specimen feed: 28mm: Yes
- Vertical stroke: 70mm: Yes
- Specimen orientation with zero position horizontal/vertical rotation: X/Y axis 8°: Yes
- Maximum specimen size：55*50*30mm: Yes
- W x D x H: 470mm×553mm×305mm: Yes
- Machine weight: 28kg
- Fully motorized and semi- motorized mode switch: No
- Emergency stop button: No
- Cut window function: No
- Slice speed selection: No
- Multiple slice modes: No
- Pedals : No
