Description

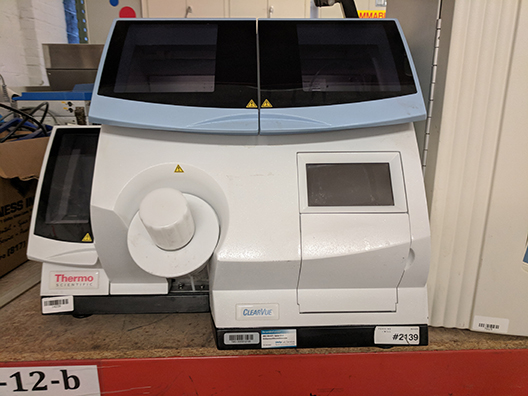

Boost speed and accuracy in busy laboratories by automating the coverslipping workload with the Thermo Scientific ClearVue Coverslipper. Simply place a basket of slides onto the load rail and close the door the ClearVue Coverslipper does all the rest.
Compatibility
- Permits loading of slide baskets from any of these stainers in a mix-or-match fashion without requiring operator adjustments to the coverslipper
Specimen Recognition
- Automatically recognizes different types of slide preparations and delivers the correct amount of mountant for coverslipping each
- Handles both histology and cytology samples simultaneously without user interaction while still delivering right amount of mountant
Load-on-Demand
- Handles up to 11 slide baskets at the same time with load-on-demand capabilities
- Accepts baskets loaded one at a time or up to five baskets loaded together
Optical Recognition
- Possesses the unique ability to optically recognize and position slides during the coverslipping process
- Recognizes the position of each slide in a basket, removes each slide with a set of slide-grippers and returns every slide back, while maintaining slide positioning
User Interface
- Intuitive user interface features a touchscreen panel
- Software monitors the type of slide preparation, size and number of slips dispensed and the number of baskets waiting to be coverslipped
Specifications:
- Compatibility: Thermo Scientific Varistain Gemini ES, Varistain 24-4, Sakura DRS2000, Leica Auto-Stainer
- Specimen Recognition: Automatically recognizes different types of slide preparations, delivers correct amount of mountant for coverslipping each
- Interface: Intuitive user interface features a touchscreen panel
- Height (English): 19.75 in.
- Length (English): 22.75 in.
- Width (English): 25.5 in.
- Weight (English): 110 lb.
- Voltage: 100 to 240V
- Hertz: 50/60Hz
- Electrical Requirements: 100 to 240V 50/60Hz
- Dimensions (L x W x H): 22.75 x 25.5 x 19.75 in. (57.5 x 64.5 x 50cm)
