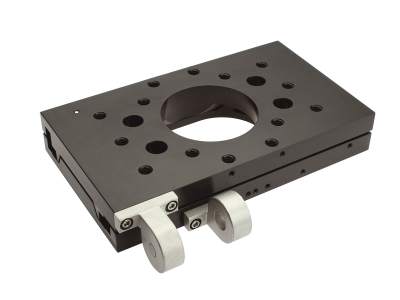

The M-436A High-Performance Low-Profile Crossed-Roller Bearing Linear Stages feature crossed-roller bearings running on ground steel V-ways to provide an attractive combination of high-resolution movement, low runout, and large load capacity. This version features a 50.8 mm diameter aperture in the center of the mounting plate with M6 tapped holes and a 50.8 mm travel range. The stages are easily stacked for XY applications, and may be combined with our Model 360-90 Angle Bracket for XYZ configurations.
Технические характеристики
- Axes of Travel X
- Maximum Stage Travel 50 mm
- Centered Normal Load Capacity 556 N
- Vertical Axial Load Capacity 67 N
- Angular Deviation
- Material Aluminum
- Bearings Crossed-Roller Bearings
- Drive Location Side drive
- Platform Size 88.9 x 152.4 mm
- Aperture Diameter 50.8 mm
- Height 25.4 mm
- Weight 2.200 lbs
- Thread Type M6
- Recommended Adjustment Screw AJS100-2
- Recommended Vernier Micrometer SM-50
- Recommended LTA Motorized Actuator1 LTA-HS
