Features
- Measuring range:
- -40 to 185°F (-40 to 85°C) / 0 to 100%rh (standard models)
- -94 to 185°F (-70 to 85°C) Td / -40 to 185°F (-40 to 85°C) (low dew point model)
- Temperature sensors:
- Pt100 Class A (standard models)
- Pt1000, Class B 1/3 (low dew point model)
- Humidity sensors:
- Hygromer IN-1 (standard models)
- Hygromer LDP-1 sensor (low dew point model)
- ±0.8%rh / ±0.1K accuracy at 23 ±5°C

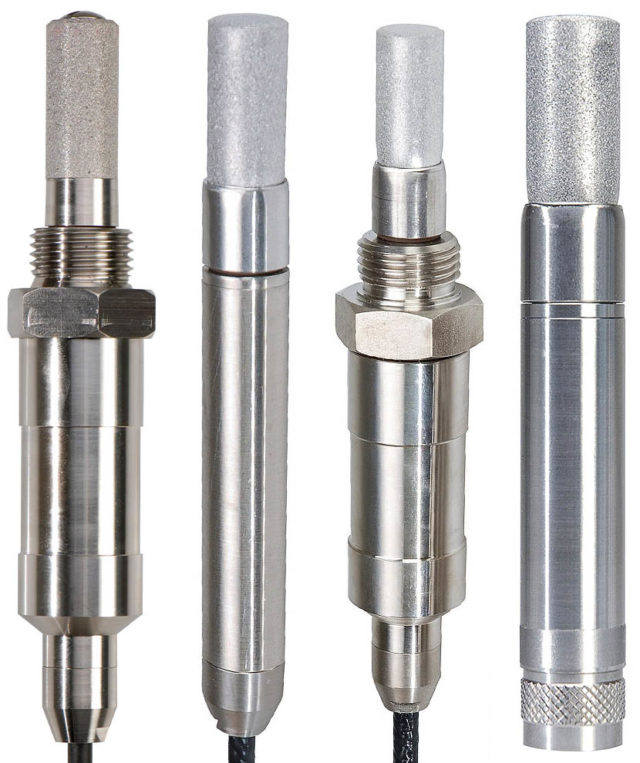

- Probe types available:
- Screw in
- Wall mount
- Cable
- Low dew point screw in
- Stainless steel housing
- EX Identification (North America):
- Class I, Div 1/2, Groups ABCD T5…T4,
- Class II, Div 1/2, Groups EFG T80°C…T110°C
- Ex e mb [ia Ga] IIC T5…T4 Ga/Gb
- Ex tb [ia Da] IIIC T80°C…T110°C Da/Db
- Class I, Zone 0/1, AEx e mb [ia Ga] IIC T5…T4 Ga/Gb
- Class II, Zone 20/21, AEx tb [ia Da] IIIC T80°C…T110°C Da/Db
This product is an accessory for the following products: Rotronic HygroFlex5-EX Series Humidity and Temperature Transmitter
Two-channel transmitter designed for use in areas with explosive atmospheres.
Starting at $1,801.00
