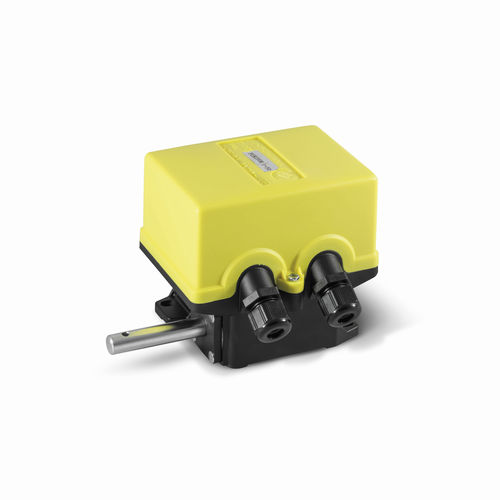

Product code/s FGR2006, FGR20066FGR2007, FGR20076FGR2008, FGR20086FGR2009, FGR20096FGR2010, FGR20106 FGR2 – Base Fixing – 4 or 6 Microswitches – Base Fixing, – IP65 protection class (IEC / EN 60529), – Available in direct ratios: 1:12, 1:33, 1:50, 1:75, 1:100, 1:200, (optional on request), – Microswitches: 1. device available with 4 or 6 microswitches, 2. the working point is adjustable with a calibration screw, 3. each switch has 1NO + 1NC inside, 4. positive opening for NC contacts. Features SeriesFGR2, HANDLING SYSTEM
Технические характеристики
CharacteristicsTechnologyrotating cam, rotary, gear, worm gearSizesmallProtection levelIP65Other characteristicswith return roller lever, adjustable, rugged, with flexible rod, control, heavy-duty, metal case, electronicDomainfor agricultural applications, for harsh environments
