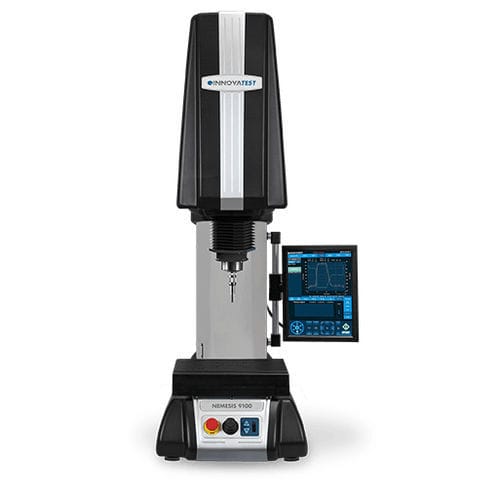

ROCKWELL/BRINELL HARDNESS TESTER Rock-solid multi purpose NEMESIS 9100RS(B), is the ‘’big brother’’ of the 6200 series. This Rockwell/Brinell hardness testers frame is constructed for continuous use of 3000kgf test force, 20 X more than the requirement for Rockwell, and therefore very suitable for Brinell. The ultimate rigid linear force actuator can be equipped with a variety of extensions. The 9103RS(B) workhorse conducts besides pure Rockwell & Superficial Rockwell hardness scales, a full load range up to 3000kgf. This tester is often used to perform 24/7 testing in robotic systems, in-line systems and/or can be used for special stages and fixtures to conduct fully automatic testing on for instance crankshafts. Highlights Scales: Rockwell & Superficial Rockwell, Brinell (RSB model) Test Forces: 3, 10kgf pre-load, 60, 100, 150kgf main load. All Brinell test forces from up to 3000kg Load App. System: Fully automatic, Load cell, closed loop, force feedback Control: Integrated i7 Windows Controller, SSD hard disk, Windows 10 operated, IMPRESSIONS™ advanced workflow software, includes automatic measurement, keyboard & mouse Display: 15” full colour touch screen Advanced Output: Multi USB, CSV files, single readings, reports, printer, Q-DAS certified
Технические характеристики
CharacteristicsTypeRockwell, BrinellMountingbenchtopProduct applicationsindustrialOther characteristicsmotorized, superficial
