Description

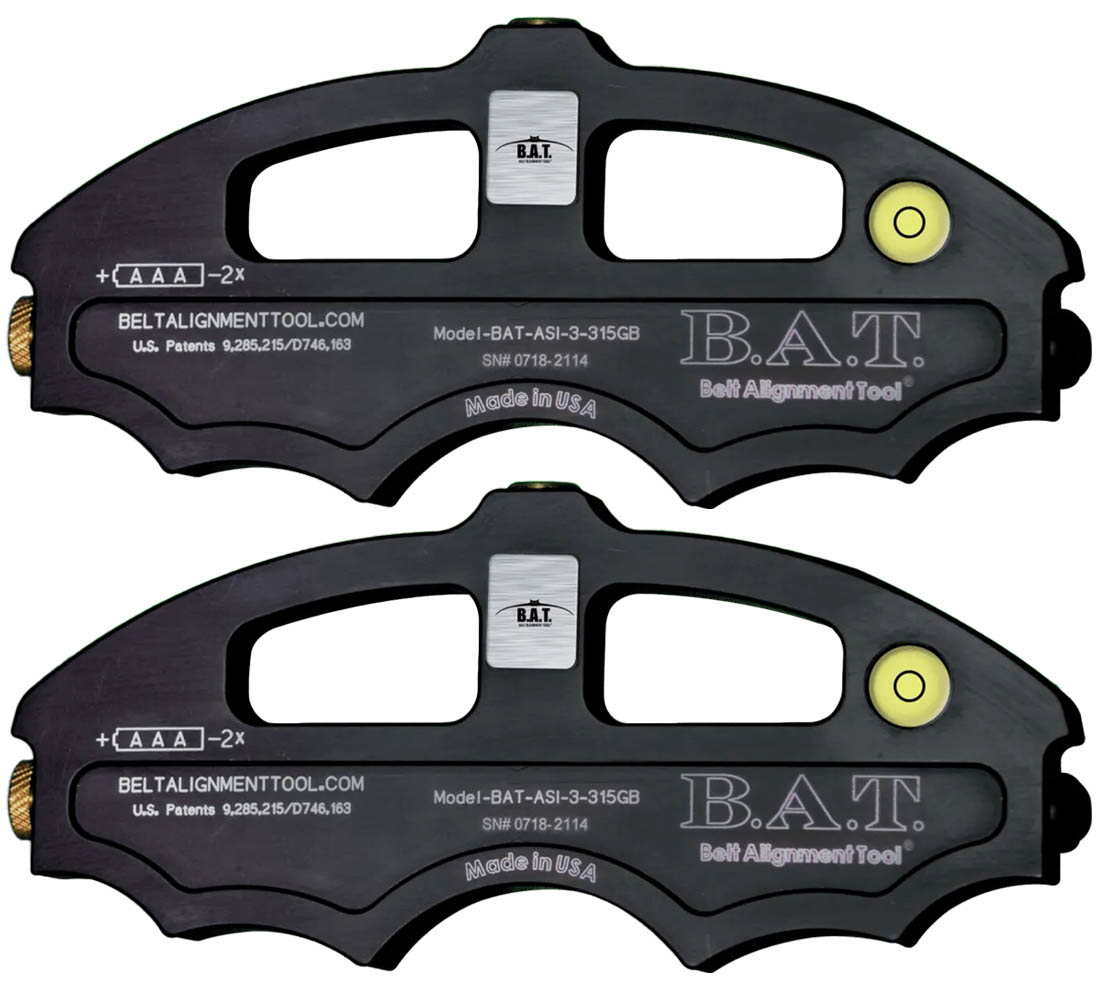

The Reliability Concepts B.A.T. belt alignment tool features dual crossfire green lasers and three GlowLine targets, allowing the user to quickly identify any potential issues and the ability to quickly make the corrective changes to stay up and running. The B.A.T. can properly identify the misalignment, detect mechanical defects such as bent pulleys or shafts, soft foot, worn shaft or bore, and loose bearings and fits.
Applications:
- V-belts
- Timing belts
- Flat belts
- Drive chains
- Motor base level
- Conveyor belt tracking
- Take-up rolls
- Banking rollers
- Level
- Base flatness verification
Технические характеристики
Features
- .020in at 8ft accuracy
- Laser line width:
- Beam angle: 70in at 3ft, 162in at 8ft
- Green line laser-Class IIIa / 3R =
- 6061 flat black anodized aluminum construction
- 1.00in diameter x .750in length — fixed targets
- Magnetic mounting for pulleys 2in and up
- IP64 rated
- 5-year warranty
What’s in the Box
- 2x cross firing lasers
- 3x GlowLine puck targets
- 4x AAA batteries
- Manual
- Carrying case
