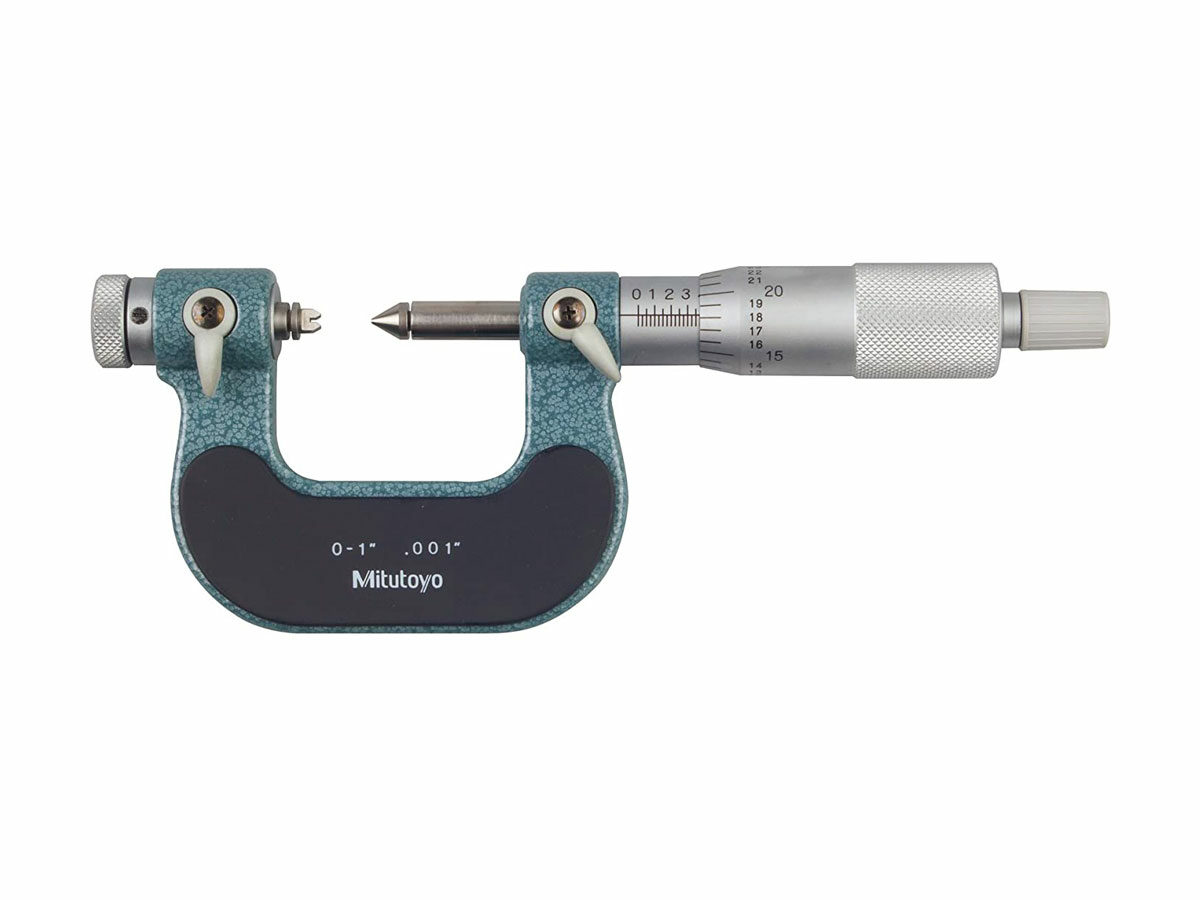

The Mitutoyo screw thread micrometer uses optional V-anvil and conical spindle inserts interchangeably to precisely measure pitch diameters of metric or unified screw threads. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
- Available in Metric and Inch models
- Optional interchangeable 60 degree and 55 degree V-Anvil and conical spindle inserts are precision ground hardened, high-grade steel
- Ratchet mechanism provides an audible click to ensure measurement is performed at a constant force
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame has a baked enamel finish for durability and longer lifespan
- Includes a standard bar except for 0-25mm and 0-1” models
- Supplied in fitted plastic case
| Order No.: | Product Image: | Range: | Mass: |
|---|
| Order No.: |
|---|
| 126-901 |  | 0-1″ | 240g |
| 126-902 |  | 1-2″ | 290g |
| 126-903 |  | 2-3″ | 390g |
| 126-904 |  | 3-4″ | 450g |
| 126-905 |  | 4-5″ | 530g |
| 126-906 |  | 5-6″ | 620g |
| 126-901 |
| 126-902 |
| 126-903 |
| 126-904 |
| 126-905 |
| 126-906 |
Технические характеристики
| Technology: | Mechanical |
|---|---|
| Units: | Inch |
| Spindle Feed Error: | 0.00015′ |
| SPC Output: | No |
| Ratchet/Thimble: | Ratchet Stop |
| Graduation: | 0.001′ |
| Optional Accessories: | 126-800, 126-810 |
