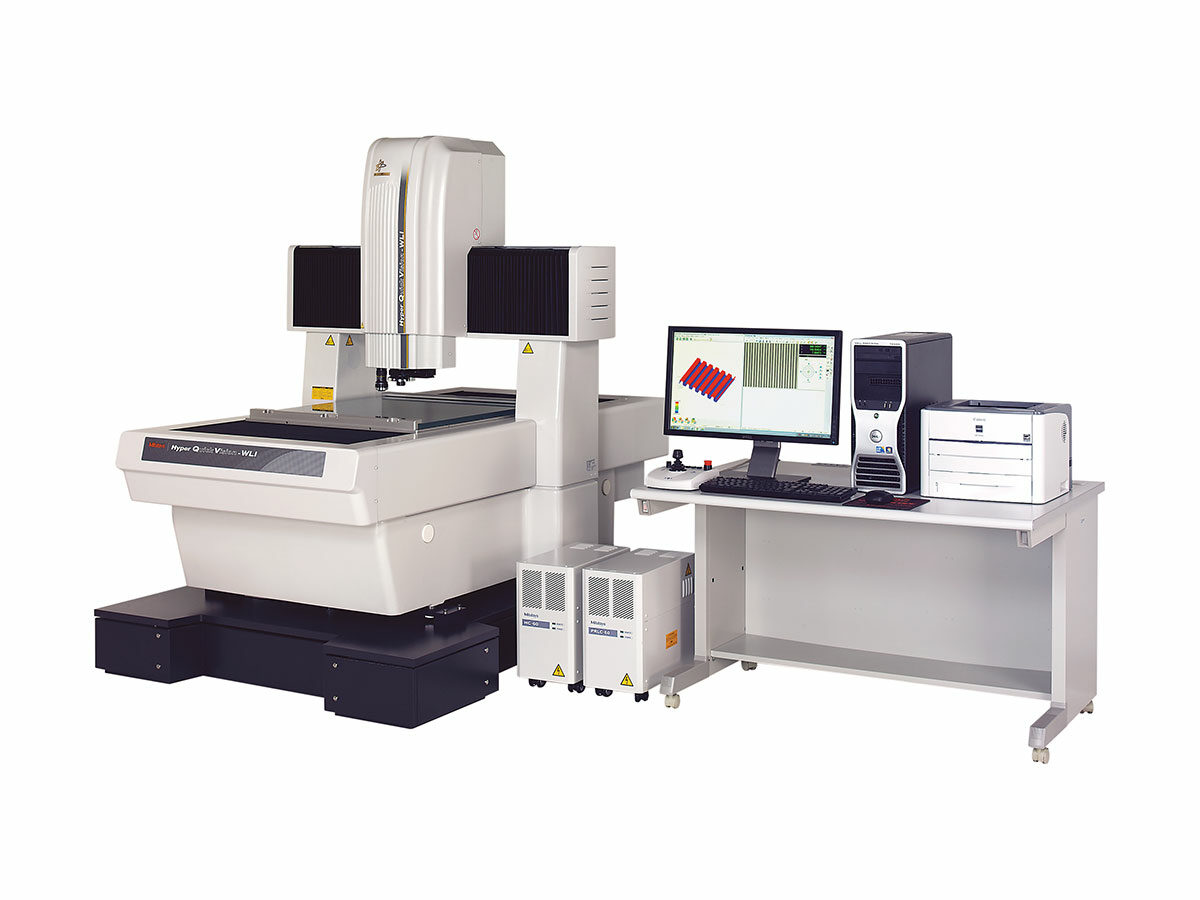

The Mitutoyo Quick Vision Hyper WLI is a highly accurate, dual-head Vision Measuring System equipped with a White Light Interferometer (WLI) optical head. The WLI allows the machine to perform highly accurate 3D optical scans. These scans are ideal for applications such as surface analysis, small-diameter hole depth and circuit board wiring dimensions.
- Programmable turreted zoom changes the magnification multiplier from 1X to 6X
- Main frame structure has a fixed-bridge construction allowing high-accuracy measurements
- Pneumatic auto-leveling vibration isolator is provided as a standard structure for added stability of measurement
- Standard temperature compensation offers higher accuracy in measurements
- The WLI uses a high aspect ratio to accurately measure shapes.
- Large work stage accurately handles oversized work pieces such as a PCB
- The accuracy of this model conforms to ISO10360-7:2011 (specifications on request)
| Order No.: | Model: | Range X-Axis: | Range Y-Axis: | Range Z-Axis: | Workpiece Max Load: | Mass (incl. stand and controller): | Dimensions: | |
|---|
| 363-713-20S | QVW-H302P1L-D | 12″ / 300mm | 8″ / 200mm | 8″ / 200mm | 33lbs / 15kg | 1080lbs / 490kgs | 37 x 34 x 63″ (950 x 859 x 1606mm) |
| 363-714-20S | QVW-H404P1L-D | 16″ / 400mm | 16″ / 400mm | 10″ / 250mm | 55lbs / 25kg | 2558lbs / 1160kgs | 55 x 40 x 70″ (1407 x 1027 x 1780.5mm) |
| 363-715-20S | QVW-H606P1L-D | 24″ / 600mm | 26″ / 650mm | 10″ / 250mm | 77lbs / 35kg | 5016lbs / 2275kgs | 78 x 52 x 71″ (1985 x 1309 x 1792mm) |
| 363-713-20S |
| 363-714-20S |
| 363-715-20S |
Технические характеристики
| Technology: | CNC VMM |
|---|
| Scale Resolution: | 0.0000003937′ / 0.00001mm |
|---|
| Environment: | 68°F
20°C |
|---|
| Camera Type: | B&W CCD |
|---|
| Field of View: | 0.0016 x 0.0012 — 0.4937 x 0.3701′ / 0.04 x 0.03 — 12.54 x 9.4mm |
|---|
| Zoom Type: | Internal Turret |
|---|
| Magnification: | 16x — 4800x |
|---|
| Illumination System: | — |
|---|
| Touch Trigger Probe: | No |
|---|
| Color Lighting: | No |
|---|
| Optical 3D Scanning (PFF): | Optional |
|---|
| Laser Tracking Autofocus (TAF): | No |
|---|
| Vibration Stand: | Standard |
|---|
| WLI Repeatability: | 2σ ≤ 0.08μm |
|---|
