Quantitative Quality Indicator (QQI) Test Pieces

Quantitative Quality Indicators (QQI) are magnetic particle test pieces with artificial defects used to verify field direction and relative strength. QQIs are also used to balance multi-directional fields and to increase productivity by minimizing magnetizing shots. *The QQI indicator shims are packaged in sets of five.

Product Information

Magnaflux test pieces contain artificial defects that simulate discontinuities when verifying MPI system performance.

Specifications Compliance: AS 5371, ASTM E709, ASTM E1444, ASTM BPVC Section V Article 7, ASTM E3024

Part Numbers:

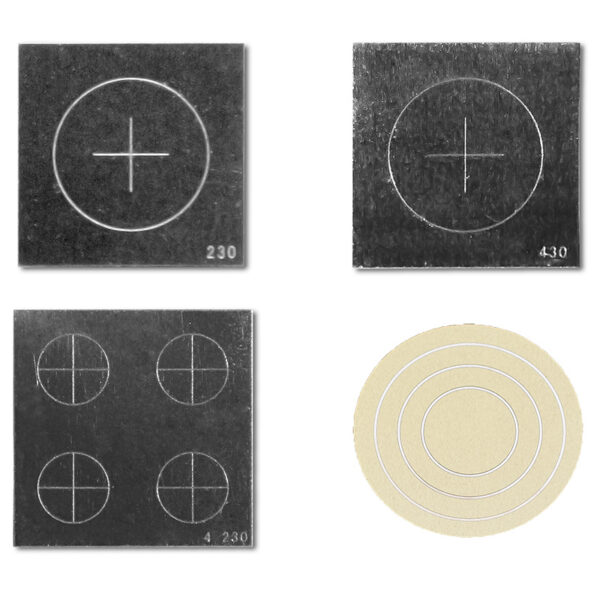

631590: QQI Model# CX-230, Set of 5 0.75 inch (19 mm) square shim with circle-cross notch pattern, 0.002 inch (0.05 mm) thickness with a notch depth of 30% of shim thickness.
631591: QQI Model# CX-430, Set of 5 0.75 inch (19 mm) square shim with circle-cross notch pattern, 0.004 inch (0.10 mm) thickness with a notch depth of 30% of shim thickness.
631650: QQI Model# CX-430, Self-Adhesive, Set of 5 0.75 inch (19 mm) square shim with circle-cross notch pattern, 0.004 inch (0.10 mm) thickness with a notch depth of 30% of shim thickness. Self adhesive.
631592: QQI Model# CX4-230, Set of 5 0.79 inch (20 mm) square shim with four circle-cross notch patterns, to be cut by user into four separate shims. 0.002 inch (0.05 mm) thickness with a notch depth of 30% of shim thickness.
625554: QQI Model# 3C2-234, Set of 5 0.75 inch (19 mm) square shim, 0.002 inch (0.05 mm) thickness, with three circle notches, depths at 20% (outer), 30% (center), 40% (inner) of shim thickness. Self adhesive.
