Additional Features:
- 100 MHz, 100 MS/s, 14-Bit PXI Oscilloscope
- 2 channels simultaneously sampled at 14-bit resolution
- 100 MS/s real-time and 2.0 GS/s random interleaved sampling
- 100 MHz bandwidth
- 50 Ω or 1 MΩ input impedance
- 200 mV to 20 V input range
- 75 dBc SFDR and 62 dB SINAD
- Memory options from 8 to 512 MB per channel
- Edge, window, hysteresis, video, and digital triggering with 100 ps timestamping

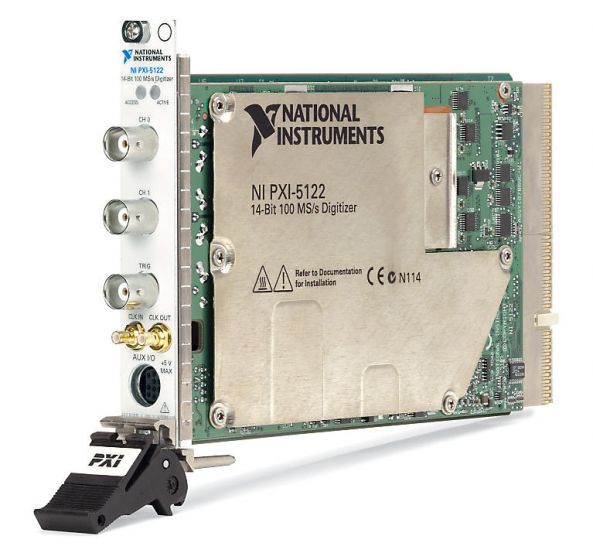

The PXI-5122 high-resolution PXI oscilloscope has two channels with flexible settings for coupling, impedance, voltage range, and filtering. PXI Oscilloscopes also feature a number of triggering modes, deep onboard memory, and an instrument driver that includes data streaming and analysis functions. This device is ideal for both time-domain and frequency-domain applications that require high-resolution, low-noise measurements with up to 100 MS/s and 100 MHz of analog bandwidth. The PXI-5122 also features PXI synchronization and data streaming capabilities.
Технические характеристики
| Manufacturer | National Instruments |
|---|---|
| Condition | Used |
