PXI-4110 National Instruments PXI

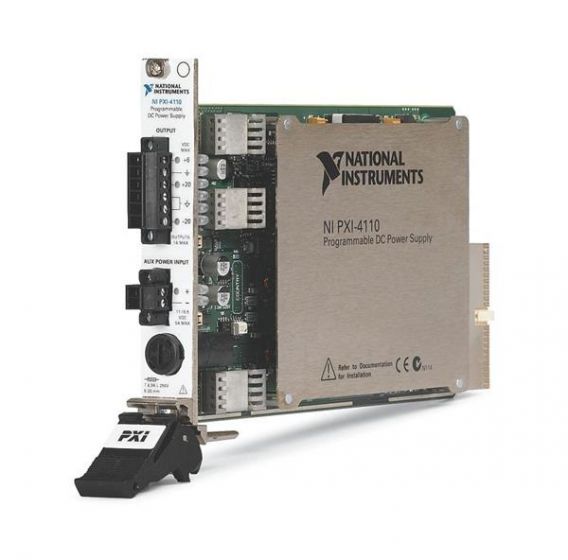

National Instruments PXI-4110 3-Channel, 20 V, 1 A PXI Programmable Power Supply
Features:
- 0 V to 6 V, 1 A power supply channel
- 0 V to 20 V, 1 A power supply channel
- -20 V to 0 V, 1 A power supply channel
- Max output power determined by power source, 9 W from PXI backplane or 46 W from APS-4100
The PXI-4110 is a programmable DC power supply. It is an excellent general-purpose, single-quadrant power supply for design validation and manufacturing test applications. The PXI-4110 has two isolated and a single non-isolated supply channel, all capable of generating up to 1 A per channel. You can program the voltage setpoint and current limit as well as the voltage and current readback/measurement functionality. You can also combine channels for higher voltage or current.
Технические характеристики
| Manufacturer | National Instruments |
|---|---|
| Condition | Used |
