Features
- RF/Microwave Instrumentation
- portable
- self-contained
- air-cooled
- broadband
Specifications
- Banks: 1, 2, 4, 8, 16
- Channels: 4, 8, 16, 32, 64
- Channel-to-channel: 100 V
- Switch Bandwidth: 30 MHz
- Maximum current (per channel or common, switching or carry): 1 A
- Maximum switching power (per channel) 30 W, 37.5 VA
- Dimensions: 8.5 x 0.8 x 5.1 in.
- Weight: 12 oz.

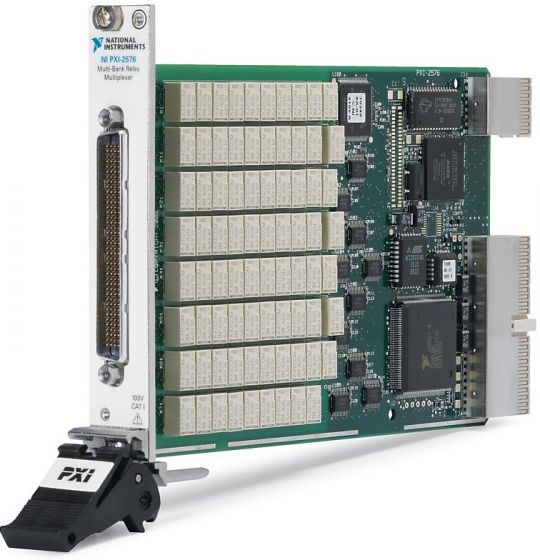

The PXI-2576 is a multibank PXI multiplexer switch module with 16 banks of 4×1 2-wire multiplexers. With the flexible architecture of the PXI-2576, you can configure it in a variety of topologies that make it suitable for parallel measurement operations requiring low-channel counts, or you can combine all multiplexer banks to form a single high-channel-count multiplexer featuring 64 2-wire channels.
Технические характеристики
| Manufacturer | National Instruments |
|---|---|
| Condition | Used |
