Features:
- Matrix-expandable using terminal blocks
- Scanning rate of 2,000 crosspoints per second
- 100 V DC/100 Vp maximum switching voltage
- 500 mA maximum switching current
Specifications:
- Crosspoints: 512
- Banks: 16
- Dimensions: 8.5 x 0.8 x 5.1 in.

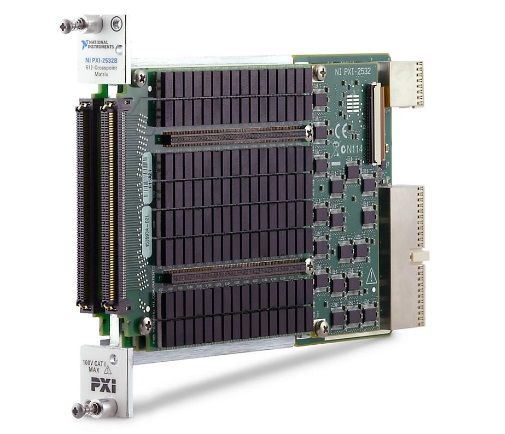

The PXI-2532 is a multiconfiguration, high-density matrix switch modules configurable with front-mounting terminal blocks. They are matrix-expandable using terminal blocks. The 1-wire configurations are 4×128, 8×64, 16×32, dual 4×64, dual 8×32, dual 16×16, and quad 4×32. The 2-wire configurations are 4×64, 8×32, 16×16, and dual 4×32. All terminal blocks have ribbon cable connectivity. Because these modules are built with 16 banks of 2×16 matrices, other topologies are possible using custom connectivity solutions.
Технические характеристики
| Manufacturer | National Instruments |
|---|---|
| Condition | Used |
