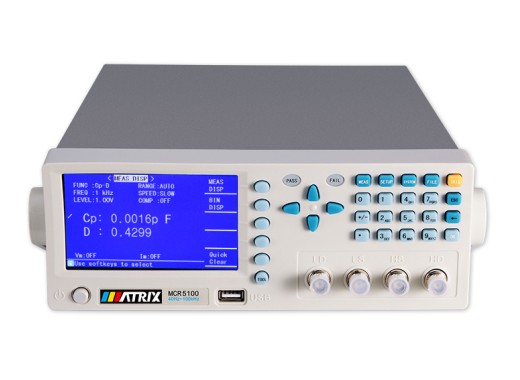

The Matrix MCR-5200 is a high quality multifuntional LCR meter used to test electronic components. The meter has a wide test frequency band of 40Hz — 200kHz that is divided in 41 frequency points. Measurements can be done with 8 different test signal levels at an measurement accuracy of 0.1%. This allows the measurement requirements of very different components to be met.
The meter has a 5-digit, 4.3′ inch LCD screen on which the direct reading, Δ% or V/I ratio can be displayed. Furthermore, the MCR-5200 features multiple interfaces like RS232 (back), USB (front). There is also a memory where more than 100 sets of internal instrument settings can be stored/recalled. Specifications |Z|, R, X, ESR 0.1mΩ-99.999MΩ C 0.01pF-9.9999F L 0.01μH-99999H D 0.0001-9.9999 Q 0.0001-9999.9 θ Deg/Rad -179.99°-179.99°/-3.1416-3.1416 Test frequency 40 Hz — 200 kHz (41 frequency steps, see manual for more information) Test signal level 0.05V, 0.1V, 0.2V, 0.25V, 0.3V, 0.4V, 0.5V, 1V Measurement accuracy 0.1% Range/Trigger functions automatic, hold, manual selection/internal, manual, external, bus Measurement speed 3/10/30 times/s Display 5-digit, 4.3′ LCD Interfaces RS232C, handler, USB (front) Dimensions 240x100x330 mm Weight 3.8 kg Accessories
The MCR-5200 comes by default with:
- 2x spare fuses
- Power cable
- Kelvin clips (BNC)
