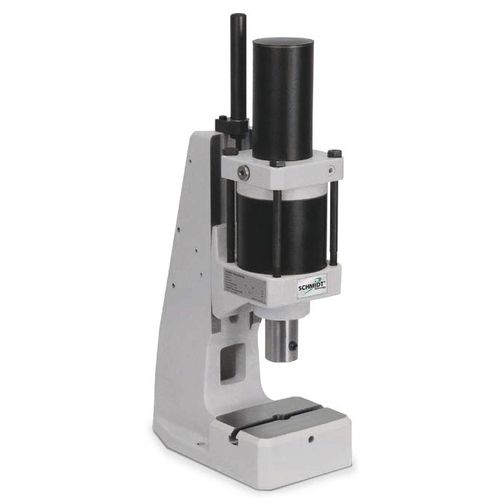

The product family SCHMIDT® PneumaticPress direct-acting with constant force progression is a modular system which optimally meets the requirements in the areas of forming, joining and assembly in the press force range from 1.6 to 43 kN. In combination with the SCHMIDT® PressControl 75 or 700 control system, the presses become EC type-tested, CE-conform workstations, optionally with process monitoring. The press systems can be used in single cycle as well as in automatic mode. Features * Round anti-rotational ram * Adjustable ram position in BDC by means of precision lower stop (1 division line = 0.05 mm) on scale * T-slot with locking set screw in fixture mounting plate Options O variant with surcharge 1) Typical values, can deviate by ± 3 mm due to casting and production tolerances Special designs Nickel plated – cast parts are electroless nickel plated, steel components black oxide finished, aluminum anodized, precision steel surfaces are untreated Custom Paint – press and column can be painted to customer’s color specification Bores for adapting tooling – customer specific sizes can be supplied
Технические характеристики
CharacteristicsOperationpneumaticFunctionbending, assembly, calibration, insertionStructureC-frame, downstroke, frameControlautomaticOther characteristicscustom, process, direct-actingForce
4.2 kN
Opening
Max.: 1,020 mm (40 in)
Min.: 90 mm (4 in)
Stroke
Max.: 300 mm (12 in)
Min.: 50 mm (2 in)
Table width
110 mm, 160 mm (4 in)
Table length
150 mm, 185 mm, 200 mm (6 in)
Weight
35 kg (77 lb)
