The U-WAVE transmitter installs on to any Mitutoyo digital measuring tool and uses the Mitutoyo Digimatic protocol to easily transfer data measurements wirelessly to a PC. The use of U-WAVE eliminates the need for long, cumbersome data cables for much better measurement efficiency. The U-WAVE transmitters are available for Mitutoyo digital calipers, micrometers, indicators and height gages and transmit measurement data.
- User-friendly interface allows data to be loaded into any software product that accepts keyboard input, such as Microsoft Excel™ or Notepad
- Models are available using the Mitutoyo or BlueTooth™ protocols
- Available with LED and Buzzer/LED reception indicators
| Order No.: | Product Image: | Model: | Remarks: | Connection Unit Required: | Connection Cable Required: | Fit: | U-Wave-R Required: | Bluetooth 4.2 required device: | Supports Mobile Devices: | Free Mobile Apps Available: | Bracket Kit compatible: | Data reception indication: | Outside Dimensions HxWxD: | Mass: | Battery: | Battery Life: | Optional Accessories: | |
|---|
| 02AZD730G | — | U-Wave-T | IP67 type | No | Yes | — | Yes | No | No | No | Yes | LED | 1.73 x 1.17 x .73″ / 44 x 29.6 x 18.5mm | 23g | Lithium battery CR2032 | Approx. 400,000 transmissions | — |
| 02AZD880G | — | U-Wave-T | Buzzer type | No | Yes | — | Yes | No | No | No | Yes | Buzzer/LED | 1.73 x 1.17 x .73″ / 44 x 29.6 x 18.5mm | 23g | Lithium battery CR2032 | Approx. 400,000 transmissions | — |
| 264-620 | — | U-Wave-TC | IP67 type | Yes | No | Yes | Yes | No | No | No | — | LED | 2.20 x 1.19 x .45″ / 56 x 30.4 x 11.45mm | 18g | Lithium battery CR2032 | Approx. 400,000 transmissions | — |
| 264-621 | — | U-Wave-TC | Buzzer type | Yes | No | Yes | Yes | No | No | No | — | Buzzer/LED | 2.20 x 1.19 x .45″ / 56 x 30.4 x 11.45mm | 18g | Lithium battery CR2032 | Approx. 400,000 transmissions | — |
| 264-622 | — | U-Wave-TM | IP67 type | Yes | No | Yes | Yes | No | No | No | Yes | LED | 1.65 x 1.53 x .51″ / 41.9 x 38.8 x 12.9mm | 18g | Lithium battery CR2032 | Approx. 400,000 transmissions | — |
| 264-623 | — | U-Wave-TM | Buzzer type | Yes | No | Yes | Yes | No | No | No | Yes | Buzzer/LED | 1.65 x 1.53 x .51″ / 41.9 x 38.8 x 12.9mm | 18g | Lithium battery CR2032 | Approx. 400,000 transmissions | — |
| 264-624 | — | U-Wave-TCB | IP67 type | Yes | No | Yes | No | Yes | Yes | Yes | — | LED | 2.20 x 1.19 x .45″ / 56 x 30.4 x 11.45mm | 18g | Lithium battery CR2032 | Up to 200,000 | — |
| 264-625 | — | U-Wave-TCB | Buzzer type | Yes | No | Yes | No | Yes | Yes | Yes | — | Buzzer/LED | 2.20 x 1.19 x .45″ / 56 x 30.4 x 11.45mm | 18g | Lithium battery CR2032 | Up to 200,000 | — |

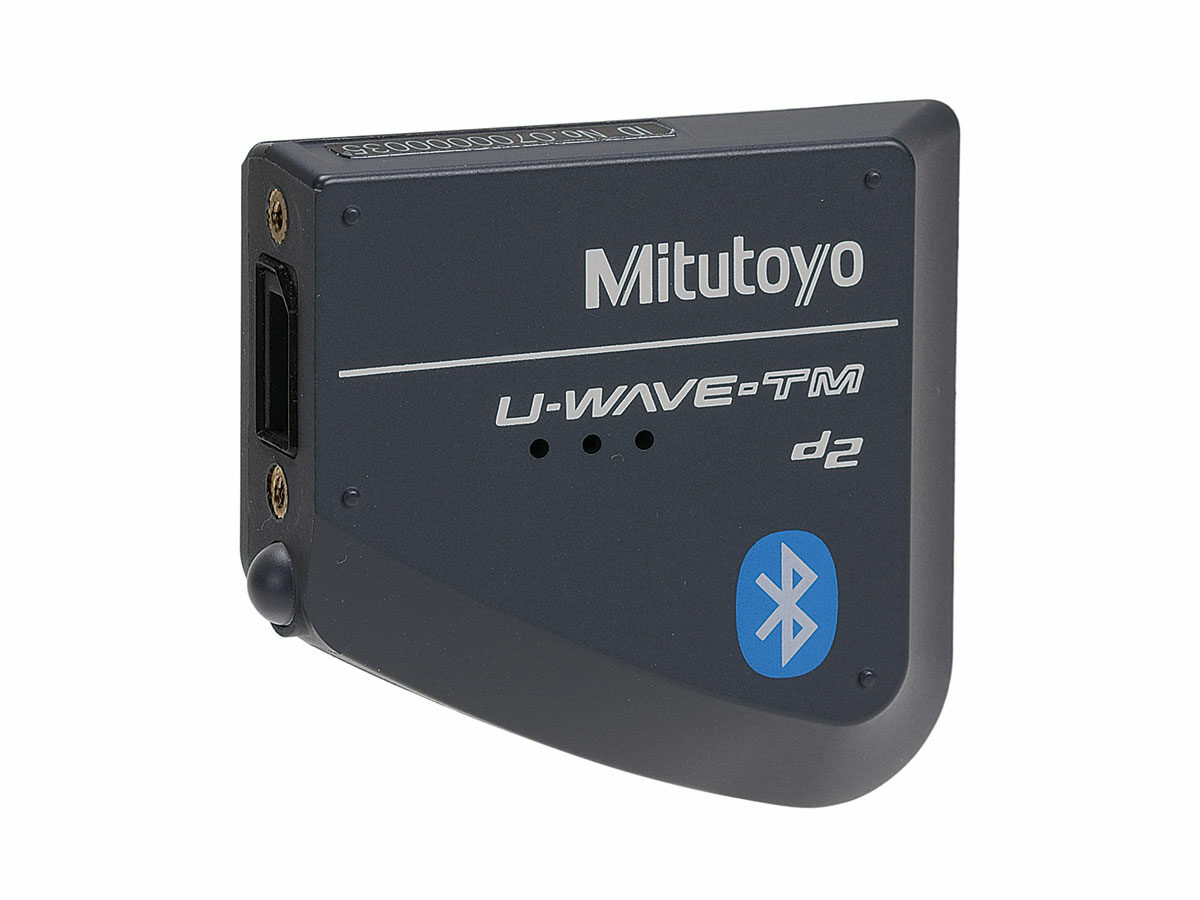

| 264-626 | — | U-Wave-TMB | IP67 type | Yes | No | Yes | No | Yes | Yes | Yes | Yes | LED | 1.65 x 1.53 x .51″ / 41.9 x 38.8 x 12.9mm | 18g | Lithium battery CR2032 | Up to 200,000 | — |
| 264-627 | — | U-Wave-TMB | Buzzer type | Yes | No | Yes | No | Yes | Yes | Yes | Yes | Buzzer/LED | 1.65 x 1.53 x .51″ / 41.9 x 38.8 x 12.9mm | 18g | Lithium battery CR2032 | Up to 200,000 | — |
| 02AZD730G |
| 02AZD880G |
| 264-620 |
| 264-621 |
| 264-622 |
| 264-623 |
| 264-624 |
| 264-625 |
| 264-626 |
| 264-627 |
