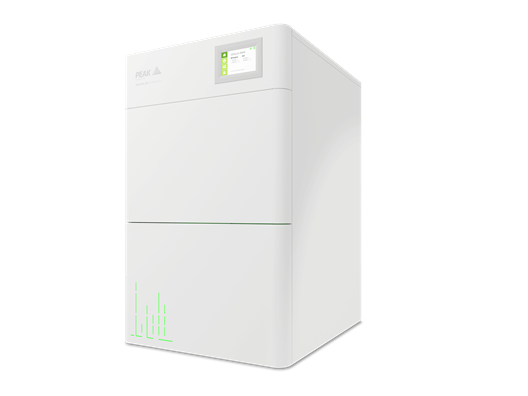

Description
Features:
- Variable flow up to 70 L/min & pressure up to 116 psi
- Multi-Stage Purification producing analytical grade nitrogen gas up to 99.5% purity
- 2 year comprehensive manufacturers warranty*
- Touch-screen full colour user interface for ease of operation
- ECO (Electronic Compressor Optimisation) technology for low energy consumption and compressor durability
- Next-generation high performance premium compressors, engineered exclusively for Genius X
- Smaller & quieter than previous generation of Genius
- On-board service scheduling and system diagnostics
- Additional compressor capacity for lower flow applications
Specifications:
- Technical Specifications:
- Max Flow Rate: up to 70 L/min
- Max Pressure: 116 psi (8 bar)
- Gas Outlets: 1 x ¼, BSPP
- Purity**: 95-99.5%
- Max Relative Humidity: 80% RH @ 31C
- Max Altitude: 3000m
- Particles: <, 0.01 &mu,m
- Phthalates: Phthalate & BHT Free
- Suspended Liquids: None
- Non-Methane Hydrocarbon Content: <, 1 ppm NMHC
- Operating Temperature: 5C (41F) to 35C (95F)
- Electrical Requirements: 230VAC, 50/60Hz, 11.3A
- Power Consumption: 2530 VA
- Heat Output: 8785 BTU
- Noise Level&dagger,: 59 dB
- Generator Dimensions (H x W x D): 1000 x 570 x 710 mm 39.4 x 22.5 x 28
- Generator Weight: 147 kg / 325 lbs
