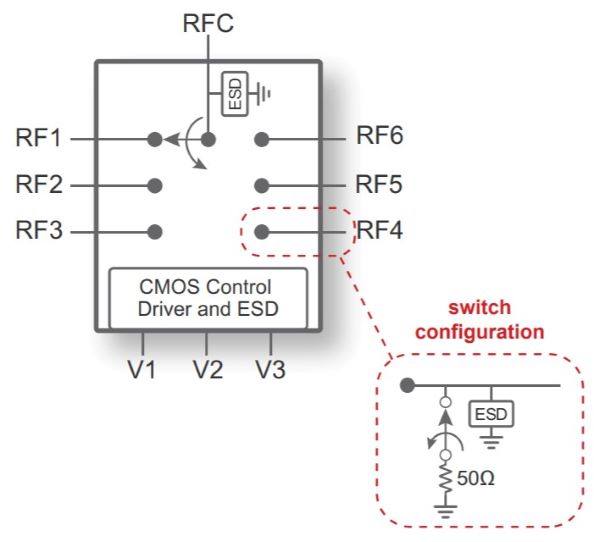

The PE426462 is a HaRP™ technology-enhanced absorptive SP6T RF switch that supports a frequency range from 10 MHz to 8 GHz. It delivers low insertion loss, fast RF TRISE/TFALL time and high isolation in the operating temperature range from –55°C to +125°C. It is ideal for harsh industrial applications that require extended support in this temperature range. No blocking capacitors are required if DC voltage is not present on the RF ports.
Технические характеристики
| Part Number: PE426462 |
| Manufacturer: pSemi |
| Type >,>,RF Switch: Single Pole |
| Function: SP6T (A) |
| Impedance: 50 Ohms |
| Frequency Range Min: 10 MHz |
| Frequency Range Max: 8000 MHz |
| Insertion Loss Min: 0.7 dB |
| Insertion Loss Max: 1.6 dB |
| Isolation Min: 30 dB |
| Isolation Max: 68 dB |
| Power Rating: 40 dBm |
| IIP3: 60 dBm |
| Package: 24L QFN |
| Description: Broadband |
