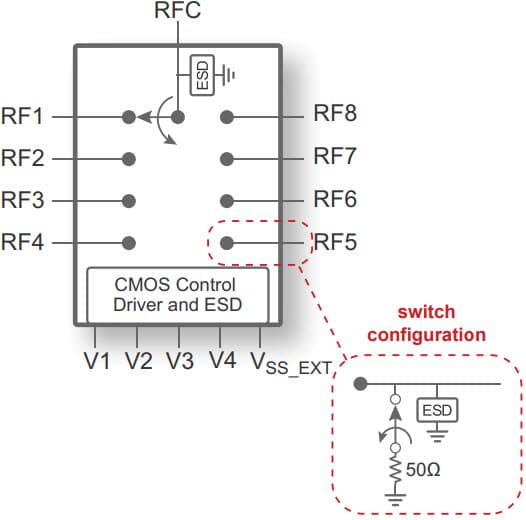

The PE42582 is a HaRP™ technology-enhanced absorptive SP8T RF switch that supports a frequency range from 9 kHz to 8 GHz. An external VSS pin is available for bypassing the internal negative voltage generator in order for the PE42582 to deliver spur-free performance. It delivers high isolation, low insertion loss and fast switching time, making this device ideal for filter bank switching and RF signal routing in test and measurement and wireless applications up to 8 GHz. No blocking capacitors are required if DC voltage is not present on the RF ports.
Технические характеристики
| Part Number: PE42582 |
| Manufacturer: pSemi |
| Type >,>,RF Switch: Single Pole |
| Function: SP8T (A) |
| Impedance: 50 Ohms |
| Frequency Range Min: 0.009 MHz |
| Frequency Range Max: 8000 MHz |
| Insertion Loss Min: 0.7 dB |
| Insertion Loss Max: 1.6 dB |
| Isolation Min: 30 dB |
| Isolation Max: 85 dB |
| Power Rating: 40 dBm |
| IIP3: 60 dBm |
| Package: 24L QFN |
| Description: Low Insertion Loss |
