The Hakko T36 soldering tips are most suitable for the Hakko FN-1010 soldering station. Please pick the desired size and type above.
Each soldering tip contains an IoT (Internet of Things) memory chip and its characteristics can be collected by the FN-1010 and saved by any computer system. The following characteristics can be collected:
- Tip shape
- Tip serial number
- Number of loads
- Total time of power supplied
- Load sensitivity
- Type of solder alloy (Lead-Free / Lead)
- Count alarm

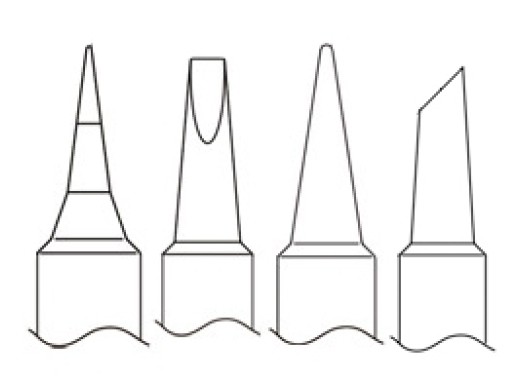

Do you need advice on which soldering tip is best for your soldering task? Take a look at Hakko’s tip selection tool. Conical ModelRadius tip (mm)Length tip (mm)AnglePriceStock T36-B∅0.2 mm7.5 mm- 35.5 €35.50 Excl. VAT T36-B2∅0.5 mm10 mm- 35.5 €35.50 Excl. VAT T36-BL∅0.2 mm12 mm- 35.3 €35.30 Excl. VAT Conical thin ModelRadius tip (mm)Length tip (mm)AnglePriceStock T36-I∅2.0 mm9.5 mm- 35.3 €35.30 Excl. VAT T36-ILS∅2.0 mm13.5 mm- 38 €38.00 Excl. VAT Bevel ModelDiameter tip (mm)Length tip (mm)AnglePriceStock T36-BC11.0 mm11.5 mm45 35.5 €35.50 Excl. VAT T36-BC22.0 mm11.5 mm45 35.99 €35.99 Excl. VAT T36-BC33.0 mm10 mm45 35.99 €35.99 Excl. VAT T36-C11.0 mm12 mm60 35.99 €35.99 Excl. VAT T36-C44.0 mm11.5 mm45 35.99 €35.99 Excl. VAT Chisel ModelSurface area tip (mm)Length tip (mm)AnglePriceStock T36-D080.5 mm x 0.8 mm9.5 mm- 35.5 €35.50 Excl. VAT T36-D160.5 mm x 1.6 mm10 mm- 35.5 €35.50 Excl. VAT T36-D240.5 mm x 2.4 mm10 mm- 35.5 €35.50 Excl. VAT T36-D521.2 mm x 5.2 mm7.5 mm- 35.5 €35.50 Excl. VAT T36-DL320.5 mm x 3.2 mm10 mm- 35.5 €35.50 Excl. VAT Conical bent ModelRadius tip (mm)Length tip (mm)AnglePriceStock T36-J020.2 mm x 3.5 mm11 mm30 35.2 €35.20 Excl. VAT T36-JS020.2 mm x 1.6 mm7.9 mm30 35.3 €35.30 Excl. VAT Knife ModelDiameter tip (mm)Length tip (mm)AnglePriceStock T36-K2.0 mm x 4.7 mm15 mm45 40 €40.00 Excl. VAT
