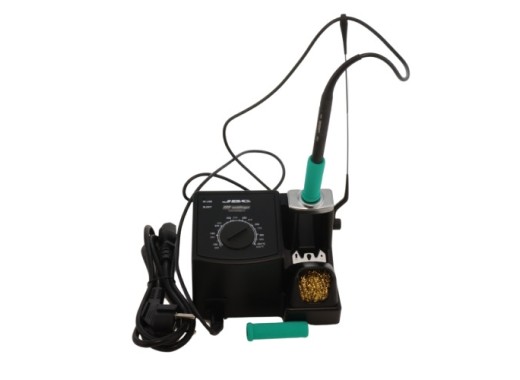

This soldering station distinguishes itself thanks to the high peak power of 140 watt. The soldering station can be set analogously from 90 to 450 C using the display and due to its high power it only takes 2 seconds to reach the desired temperature.
The built-in swipe and standby functions enable a prolonged life span of the soldering tip. The soldering iron will warm up very fast when you pick it up. Because of this, the soldering tip lasts up to 5 times longer.
The soldering station comes with an ergonomic hand piece, suited for the soldering of both SMD components and high power applications. There are no tips included. C245 soldering tips can be found via the blue button at the bottom of this page.
The soldering stations of JBC distinguish themselves from other stations due to the use of active tips. This results in a much faster heating time and also in a much bigger temperate stability during soldering, as can be seen in image 3. Because the heating element and temperature sensor are both entirely situated in the tip, the temperature can be controlled better and the difference in temperature between the tip and the rest of the soldering iron is very small. In addition, it is possible to replace the tips without the need to let them cool off first because tip exchange assistance is provided in the station.
It is optional to separately buy the T210 soldering iron (and C210 series soldering tips) and use it in combination with this station.
Specifications Power 140W / 75W Temperature range
90 C — 450 C Heating time
~ 2 sec ESD safe Yes Sleep mode temperature 220 C
