Description
1500 AMP Output, Operates from either 230 VAC or 460 VAC (must be specified.)

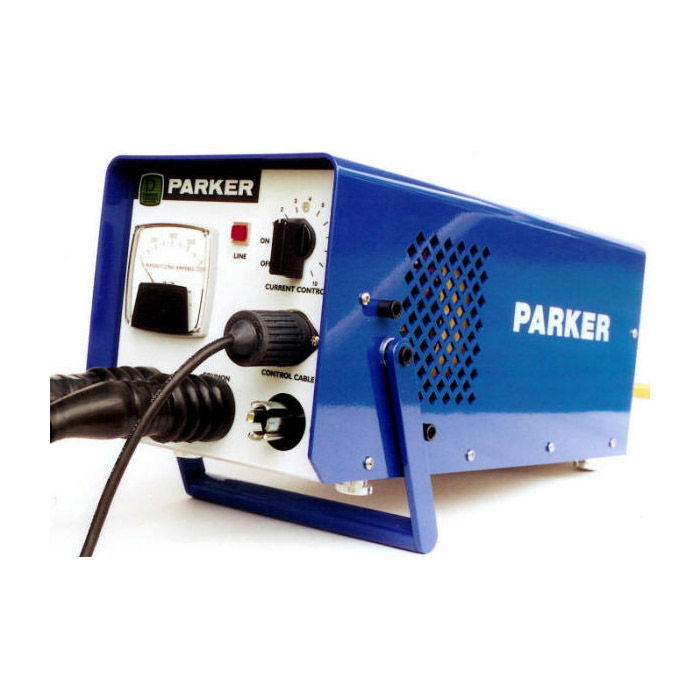

The Parker Research DA-1500 portable heavy duty magnetic inspect-ion unit provides high output AC or HWDC fields for magnetic particle inspection. Field selection is determined by using the appropriate field cable connector. Current output is in-finitely variable from zero to maximum by use of the current control loc-ated on the front panel, and is indicated by the panel meter. Actual current output is de-termined by cable size and length.
AC magnetic fields offer the best sensitivity for detection of surface defect indications. The AC field is also beneficial for demagnetizing after inspection.
Half-Wave DC magnetic fields provide for the detection of certain subsurface defect indications. DC fields penetrate a cross section of the test area rather than just the surface. Optional magnetizing cables can be equipped with prods for circular magnetization. The cables can be wrapped around parts to form a coil for longitudinal magnetization. Demagnetization is accomplished in a similar manner
Технические характеристики
Specs
| Model DA-750 | Model DA-1500 | |
| Length | 17 1/2 (44.5 cm) | 21 5/32 (54.9 cm) |
| Width | 9 1/16 (23 cm) | 9 11/32 (23.7 cm) |
| Height | 7 13/16 (19.8 cm) | 9 17/32 (24.2 cm) |
Maximum output current ratings based on the | 750 amps, AC or HWDC | 1500 amps, AC or HWDC |
| Line Voltage single phase | 115 VAC, 50/60 Hz, 230 VAC, 50/60 Hz | 230 VAC, 50/60 Hz, 460 VAC, 50/60 Hz |
| Line current | 26 amps @ 115 VAC, 13 amps @ 230 VAC | 45 amps @ 230 VAC, 23 amps @ 460 VAC |
| Maximum duty cycle | 2 minutes ON 2 minutes OFF | 2 minutes ON 2 minutes OFF |
| Unit weight | 35 lbs. (15.9 kg) | 93 lbs. (42.2 kg) |
