Description

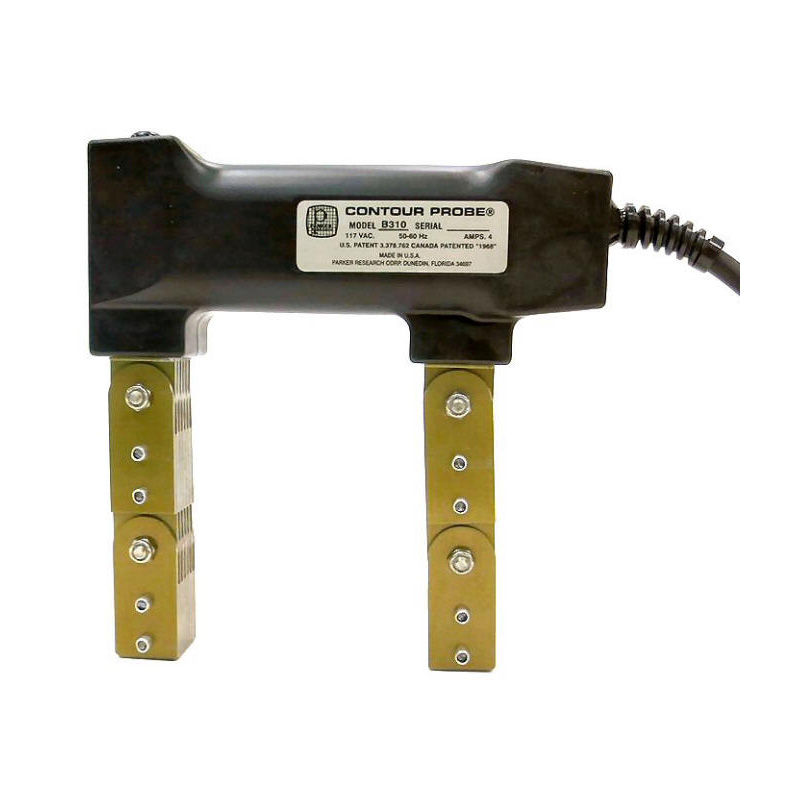

The B-310 Contour Probe is a lightweight Magnetic Inspection Yoke designed to perform magnetic particle inspections quickly and reliably, and with greater versatility. The overall length of the unit is only 7.25′.
- The B-310 Mini Contour Probe provides great flexibility and reduced size.
- Units are available in 115, 230, 42-48 VAC
- When required, the B-310 may be operated from the optional DC-300 pulsed DC power supply to provide intense DC magnetic field
- One year repair/replacement guarantee
The reversible strain-relief feature allows the power cord to enter from the rear or top of the unit permitting greater access to small work areas.
As with all Parker Contour Probes, the B-310 has fully adjustable legs permitting the AC magnetic field to be applied to the precise area of inspection.
Due to shipping regulations, aerosols must ship via ground delivery.
Optional Kits
A Kit
Included:
Instrument, 1 lb. Red Powder ,1 lb. Gray Powder
PB1 Applicator, Steel Carrying Case
A/B Kit
Included:
Instrument, 1 lb. Red Powder, 1 lb. Gray Powder
PB1 Applicator, Steel Carrying Case, Aerosol Can of Fluorescent Particles, 4W UV Light
PL-A Kit
Included:
Instrument, 1 lb. Red Powder ,1 lb. Gray Powder
PB1 Applicator, Plastic Carrying Case
PL- A/B Kit
Included:
Instrument, 1 lb. Red Powder, 1 lb. Gray Powder
PB1 Applicator, Plastic Carrying Case, Aerosol Can of Fluorescent Particles, 4W UV Light
Технические характеристики
Specs
B-310 | B-310S | B-142 | |
| Physical | 7.25 L 7.75 H 2.125 W | ||
| Line Voltage Single Phase | 115 VAC 50/60 Hz | 230 VAC 50/60 Hz | 42-48 VAC 50/60 Hz |
| Line Current | 4 A | 3 A | 7.5 A |
| Duty Cycle | 2 minutes on 2 minutes off | ||
| Weight | 6 lb (2.73 Kg) | ||
| Construction | Polyurethane-filled glass/nylon housing | ||
| Span | 0-9 in. across poles |
