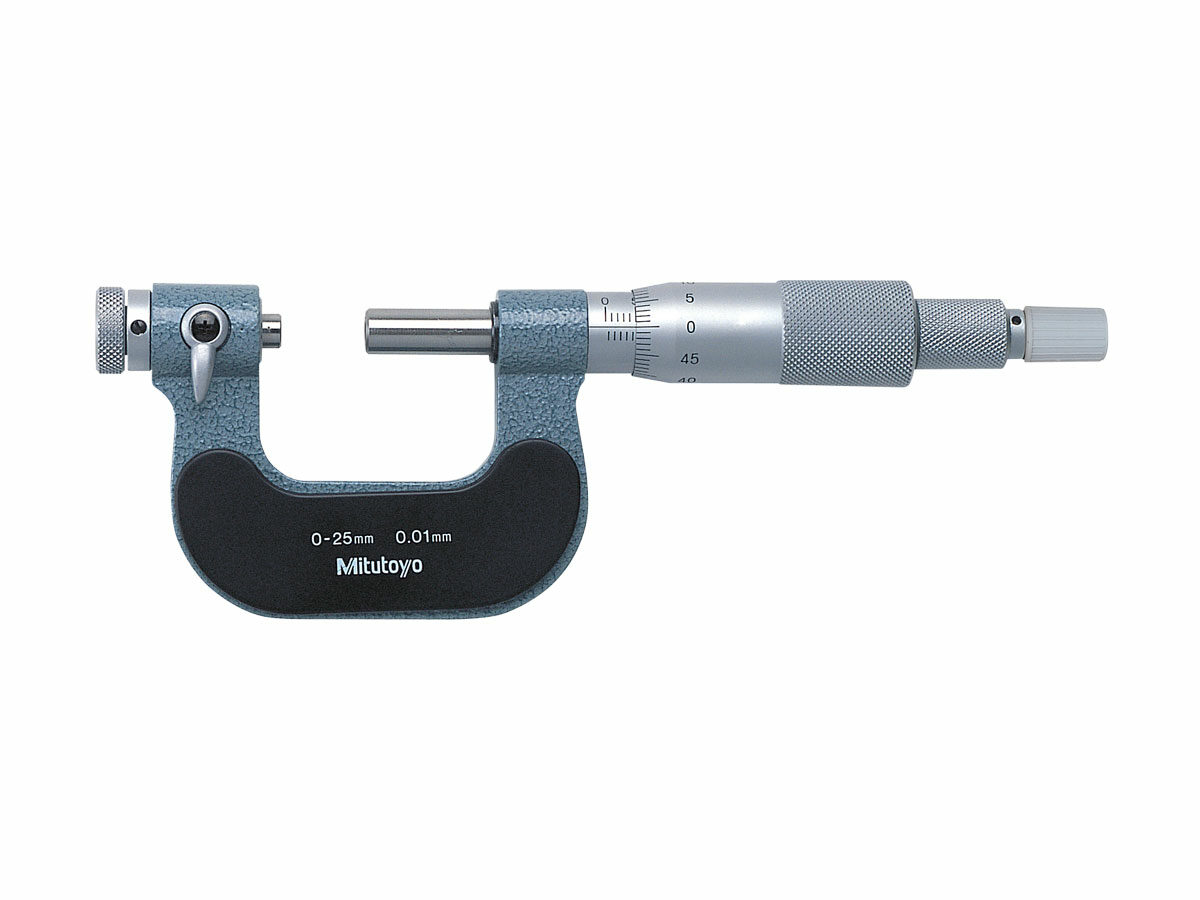

The Mitutoyo pana micrometer delivers great versatility to measure outside diameters of many different types of workpieces by interchanging anvils. The non-rotating spindle reduces torsion on softer parts being measured to prevent workpiece deformation and wear and offers steady positioning during measurement. A ratchet-stop mechanism provides uniform pressure on a workpiece for precise, repeatable measurements.
- Available in Metric and Inch models
- V-Anvils and conical spindle tips (matching pair) for screw thread measurement are also available
- Non-rotating spindle with optional seven interchangeable anvils (flat, spline, spherical, point, knife-edge, disk, and blade) for a wide range of applications
- Measuring surfaces are constructed of carbide for exceptional flatness and lasting durability
- Ratchet mechanism provides an audible click to ensure measurement performs at a constant force
- Knurled friction thimbles provides quick adjustments even when wearing gloves
- Satin chrome finish on the sleeve and laser etched measurements on thimble for easier reading
- Frame has a baked enamel finish for durability and longer lifespan
- Includes a standard bar except for the 0-25mm and 0-1” model
- Supplied in fitted plastic case
| Order No.: | Product Image: | Units: | Range: | Accuracy: | Graduation: | |
|---|
| 116-101 | ![]() | Metric | 0-25mm | ±4µm | 0.01mm |
| 116-106 | — | Inch | 1-2″ | ±.0002″ | .001″ |
Технические характеристики
| Technology: | Mechanical |
|---|
| SPC Output: | No |
|---|
| Ratchet/Thimble: | Rachet Stop |
|---|
| Optional Accessories: | 116-800, 116-830 |
|---|
