Additional Features:
- 1x/10x Attenuation
- 200 MHz Bandwidth
- 1.5 m length
- UL3111-1, CSA1010.1, EN61010-1, EN61010-2-031, and IEC61010-2-031

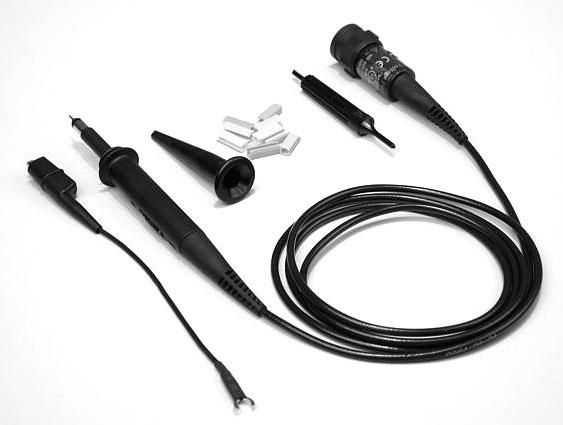

- Includes: Retractable hook tip, 6-inch ground lead, adjustment tool, marker band set, Instruction Manual*
- *The accessory quantities may differ when multiple probes are shipped with an oscilloscope/probe system.
Characteristics
10x Position
- Bandwidth: DC to 200 MHz
- Probe Length: 1.5 m
- Attenuation Ratio: 10:1
- Compensation Range: 15 to 25 pF
- Input Capacitance: 17.0 pF (typ)
- Input Resistance: 10 MΩ
- Maximum Input Voltage: 300 V CAT II
- Maximum Voltage Between Reference Lead and Earth Ground: 30 VRMS
1x Position
- Bandwidth: DC to 6 MHz
- Probe Length: 1.5 m
- Attenuation Ratio: 1:1
- Compensation Range: All oscilloscopes with 1 MΩ input
- Input Capacitance: 110 pF (typ)
- Input Resistance: 1 MΩ
- Maximum Input Voltage: 150 V CATII
- Maximum Voltage Between Reference Lead and Earth Ground: 30 VRMS
Applications:
- Relative low-frequency measurements
- Low-frequency computer and telecom measurements
- Power supplies
- Low-frequency amplifiers
The Tektronix P2220, 200 MHz passive voltage probe permits selection of 1x or 10x attenuation, using a switch located on the probe head.
The P2220 probe is compatible with TDS200, TDS1000, TDS1000B, TDS2000, TDS2000B, and TPS2000 Series oscilloscopes. The P2220 probe also provides floating measurement capability up to 30 VRMS with TPS2000 Series oscilloscopes only. (Note: Do not float with TDS2000, TDS2000B, TDS1000, TDS1000B, or TDS200 Series oscilloscopes.)
Технические характеристики
| Manufacturer | Tektronix |
|---|---|
| Condition | New |
| Voltage | 30 V |
| Frequency | 200 MHz |
