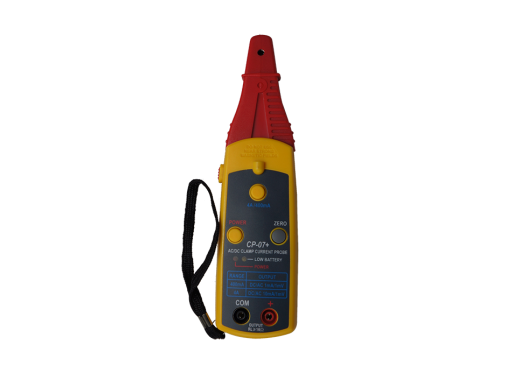

The CP-07+ is a current probe with a large bandwidth of up to 1 MHz. Besides that this probe is very accurate and has a small measurement resolution. La sonde est particulièrement adaptée à une utilisation avec un multimètre. Pour une utilisation avec un oscilloscope, les douilles de 4 mm ne sont pas idéales. Furthermore, the CP-07+ has an auto-zero and relative zero correction. The probe is particularly suitable for use with a multimeter. For use with an oscilloscope, the 4 mm sockets are not ideal.
The probe is powered by a 9V battery and has a low battery indication.
Specifications Testing range 400 mA — 4 A Resolution0.1 mA Bandwidth DC — 1 MHz Clamp size 5 mm (max) Auto-zero Yes DC current: Range (accuracy)Sensitivity 400mA (1.5% + 5d)1mV/1mA 4A (1.5% + 5d)1mV/10mA AC current: RangeSensitivity 400mA (2% + 5d)1mV/1mA 4A (2% + 5d)1mV/10mA Connector BNC Power supply9V 6F22 Battery Dimensions215 x 36 x 58 mm Weight200g
Accessories The CP-07+ is standard delivered including:
- BNC cable
- Extension cable
- Soft storage bag
