P/N: VRSD3-036.750 Key Specs
Item

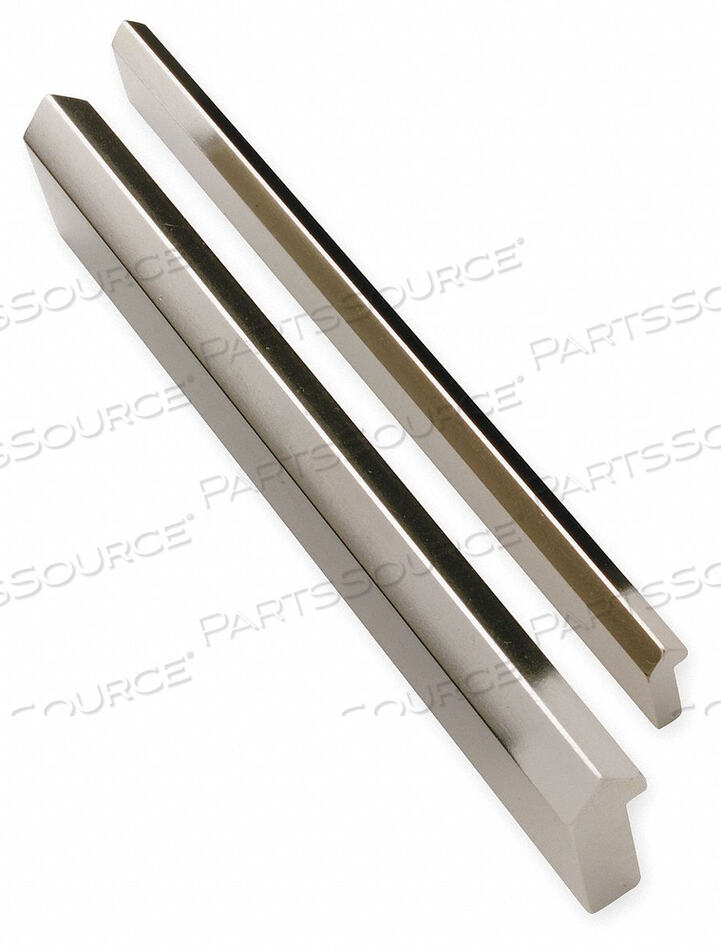

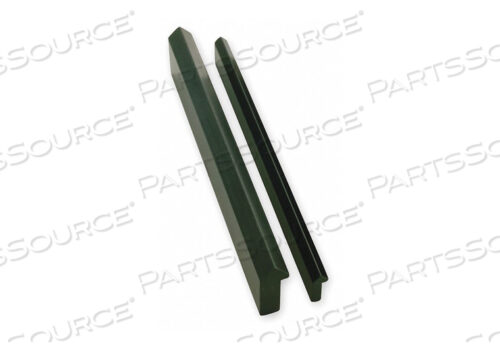

LINEAR RAIL 36.75 IN L 0.343 W 0.875 H
OEM
PBC Linear
OEM #
VRSD3-036.750
Condition
New OEM Original
Returnable
No
For Use With
V-Guide Wheels and Bushings
Mounting Hole Center to Center
3 in
Mounting Hole Size
0.281 in
Mounting Hole from Shaft End
0.375 in
Number of Rail Holes
13
Overall Height
0.875 in
Overall Length
36.75 in
Overall Width
0.343 in
Raceway
303 Stainless Steel
Rail Finish
Cold Roll
Rail Material
Stainless Steel
Screw Type
Low Profile Socket Head Cap
Temp. Range
0 — 248F
Thread Size
0.250 in or M6
Type
V-Guide
