P/N: UCFL208-24 Key Specs
Item

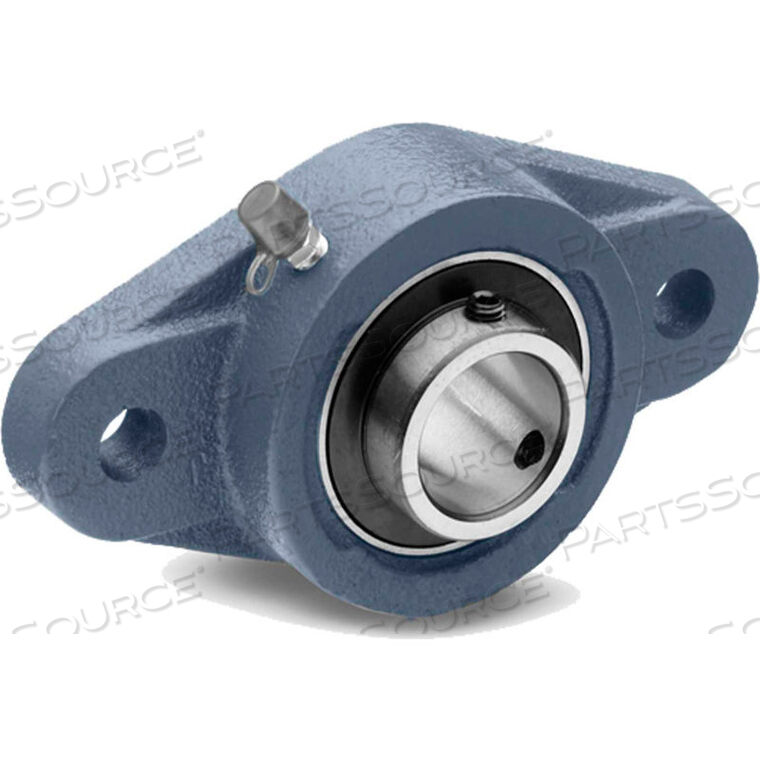

FLANGE MOUNT BEARING, 2 BOLT FLANGE, SET SCREW LOCKING, BORE 38.1 MM
OEM
Tritan
OEM #
UCFL208-24
Condition
New OEM Original
Returnable
No
Bearing Material
AISI 52100 Steel
Bearing Type
Mounted Bearing Unit
Bolt Hole Size
1/2 / M14
Bore Diameter Millimeters
38.1
Construction
Cast Iron
Dynamic Load Rating (N)
6632
Insert
UC208-24
Internal Radial Clearance
0.013 — 0.033
Locking Type
Set Screw
Maximum Temperature
250 F
Mounting Hole Center Millimeter
144
Mounting Surface To Centerline Of Shaft (Mm)
14
Number Of Bolts
2
Overall Height (Mm)
51.2
Overall Length (Mm)
175
Overall Width (Mm)
100
Static Load Rating (N)
4069
Width Millimeters
100
