P/N: UCFL207-106D1 Key Specs
Item

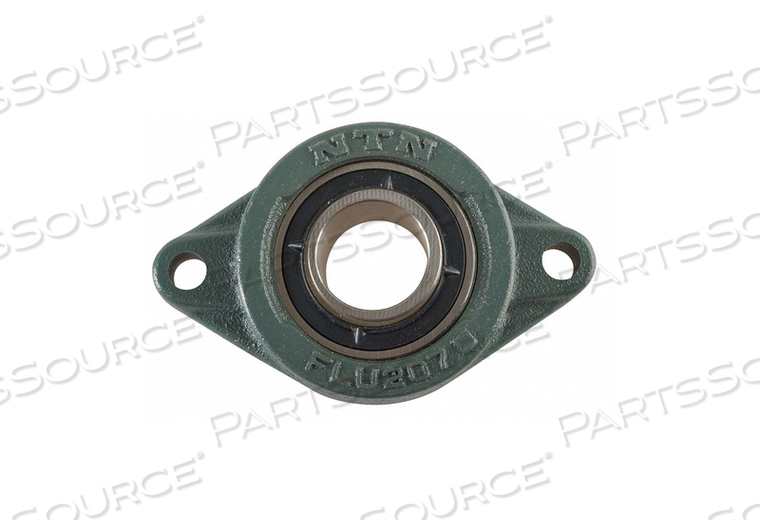

FLANGE BEARING 2-BOLT BALL 1-3/8 BORE
OEM
NTN
OEM #
UCFL207-106D1
Condition
New OEM Original
Returnable
No
Bearing Housing Material Type
Cast Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Ball
Bearing Lubrication
Shell Alvania #3 or NLGI #3 Equivalent
Bolt Hole Center-to-Center
5 1/8 in
Bolt Size
1/2 in
Bore Dia.
1 3/8 in
Dimension A
1 11/32 in
Dimension Ao
1 3/4 in
Dimension B
1 11/16 in
Dimension H
6 11/32 in
Dimension J
5 1/8 in
Dimension L
3 17/32 in
Dimension N
5/8 in
Dimension S
11/16 in
Dynamic Load Capacity
5,750 lb
Finish
Painted
Mounted Bearing Item
2-Bolt Flange Bearing
Overall Height
1 3/4 in
Overall Length
6 11/32 in
Overall Width
3 17/32 in
Series
Standard Duty
Shaft Locking Type
Set Screw
Static Load Capacity
3,440 lb
Temp. Range
-20 Degrees to 250 Degrees F
