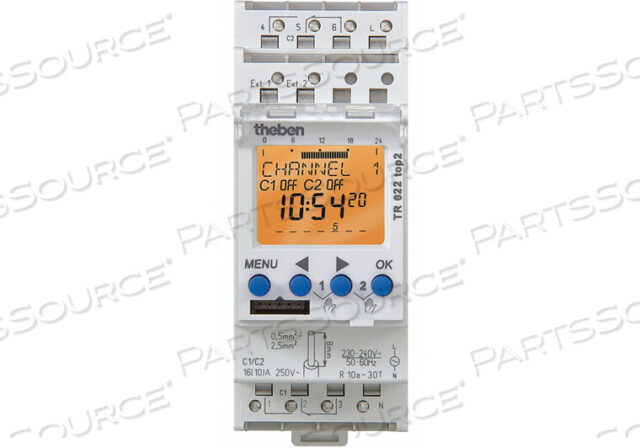

P/N: TR-622-TOP-2-12/24V Key Specs
Item
ELECTR TIMER DIN RAIL 24HR/7D 2CHN 84MEM
OEM
Theben
OEM #
TR-622-TOP-2-12/24V
Condition
New OEM Original
Returnable
No
Amps
10 A
Available Actions — Electronic Timer
Cycle, On/Off, Pulse
Backup Device
Lithium Battery
Backup Time
10 yr
Color
Gray
Contact Form
(2) SPDT
Depth
2-3/4 in
Description/Special Features
Program with Zero Cross Switching and Self Prompting Programming, Pulse Circuit and More On/Off Switch Points
Display Height
3/4 in
Display Width
1 in
Enclosure
Plastic
Event Allocation — Electronic Timer
1 Cycle Action = 1 Event, 1 On/Off Action = 1 Event, 1 Pulse Action = 1 Event
Events Available — Electronic Timer
84
HP @ 120V
2600W
Height
3-1/2 in
Max Time Setting
7 day
Min Time Setting
1 sec
Mounting
DIN Rail
NEMA Rating
1
Number of Channels
2
Number of Poles
2
Operating Temperature
-30 Degrees to 55 Degrees C
Operation Mode
7 Days
Pulse Duration
1 sec
Voltage
12/24V AC
Width
1-1/2 in
