P/N: PCT323LF Key Specs
Item

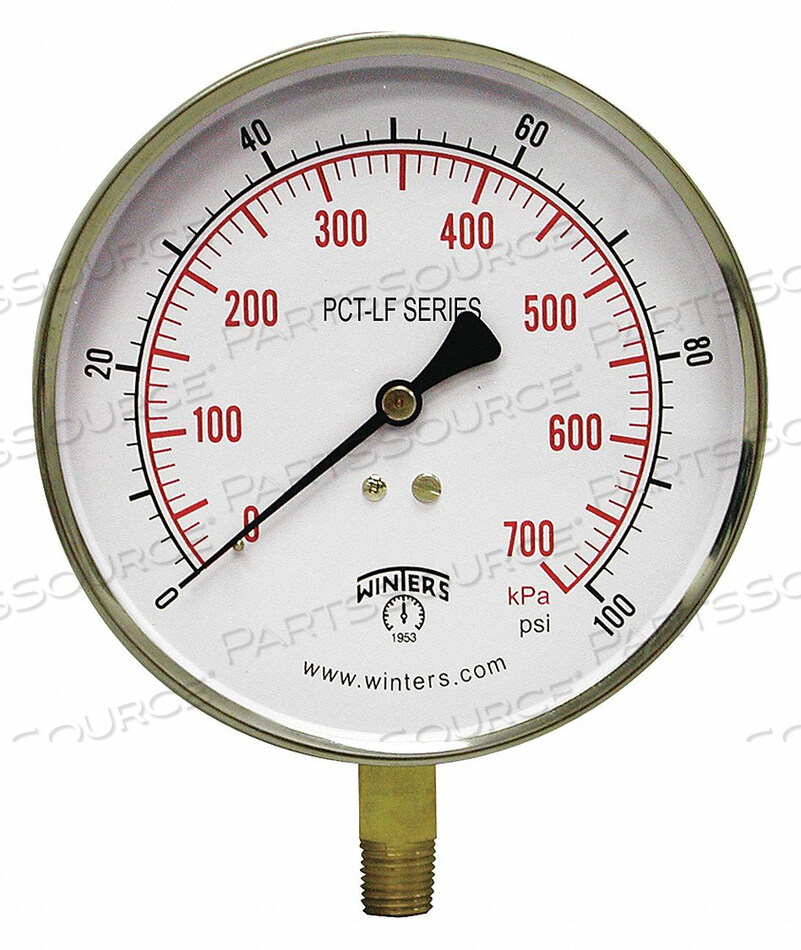

J1384 GAUGE PRESSURE 0 TO 100 PSI 4-1/2 IN.
OEM
Winters Instruments
OEM #
PCT323LF
Condition
New OEM Original
Returnable
No
Basic Gauge Case Material
Stainless Steel
Basic Gauge Lens Material
Plastic
Basic Gauge Sensor Material
Bronze
Basic Gauge Socket Material
Brass
Basic Gauge Wetted Parts
Brass / Bronze
Calibration Certificate Included
No
Characteristics
Zero Adjustment Screw, CRN Registered
For Use With
Most Commercial Air, Water, and Steam Services That Require A 1% Full-Scale Accuracy
Gauge Accuracy
+/-1.00%
Gauge Application
Lead Free
Gauge Case Color
Stainless Steel
Gauge Case Material
304 Stainless Steel
Gauge Connection Location
Bottom
Gauge Connection Size
1/4 in
Gauge Connection Type
MNPT
Gauge Lens Material
Acrylic
Gauge Nominal Dial Size
4-1/2 in
Gauge Panel Mountable
No
Gauge Primary Range Units
psi
Gauge Primary Range Values
0 to 100
Gauge Sensor Material
Lead Free Phosphor Bronze
Gauge Socket Material
Brass
Gauge Special Options
Zero Adjustment Screw
Liquid Filled
No
Manufacturers Warranty Length
5 yr
NSF Certified
Yes
Operating Temperature Range
-40 Degrees to 200 Degrees F
Pressure and Vacuum Gauge Type
Pressure Gauge
Series
PCT-LF
