P/N: NCDME044-0600 Key Specs
Item

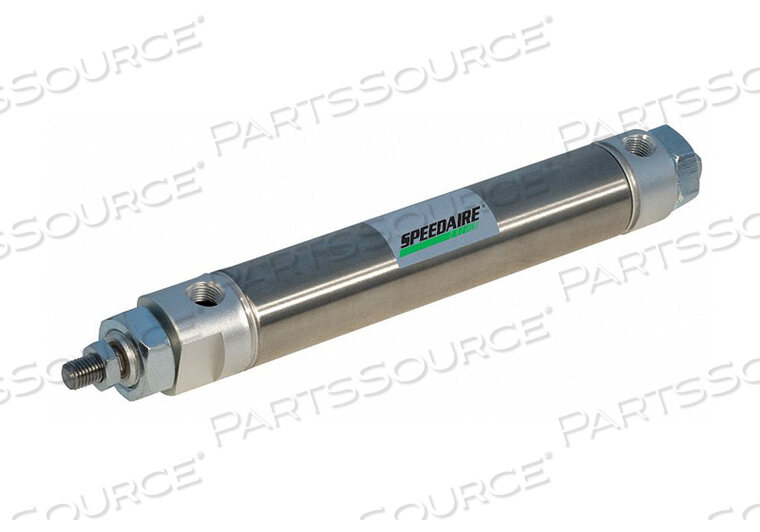

AIR CYLINDER 7/16 IN BORE 6 IN STROKE
OEM
Speedaire
OEM #
NCDME044-0600
Condition
New OEM Original
Returnable
No
Air Cylinder Bore Dia.
7/16 in
Air Cylinder Mount
Double End
Air Cylinder Product Group
Air Cylinder
Air Cylinder Type
Round Body
Body Material
Stainless Steel
Bore Dia.
7/16 in
Cushion Type
None
Cylinder Action
Double Acting
Cylinder Type
Round
End Cap Material
Aluminum
Finish
Hard Coat Anodized
Magnetic Piston
Yes
Max. Pressure
250 psi
Mount
Double End
Nose Mount Thread
7/16-20 UNF
Overall Length
9.56 in
Piston Material
Magnetic
Piston Rod Material
Chrome Plated Carbon Steel
Pivot Hole Dia.
0.156 in
Port Size
#10-32 UNF
Rod Dia.
0.197 in
Rod Thread Length
0.5 in
Rod Thread Size
#10-32 UNF
Single Acting/Double Acting
Double Acting
Stroke
6 in
Temp. Range
40 Degrees to 140 Degrees F
Tie Rod Material
N
Tube Material
Stainless Steel
