P/N: DLR10236 Key Specs
Item

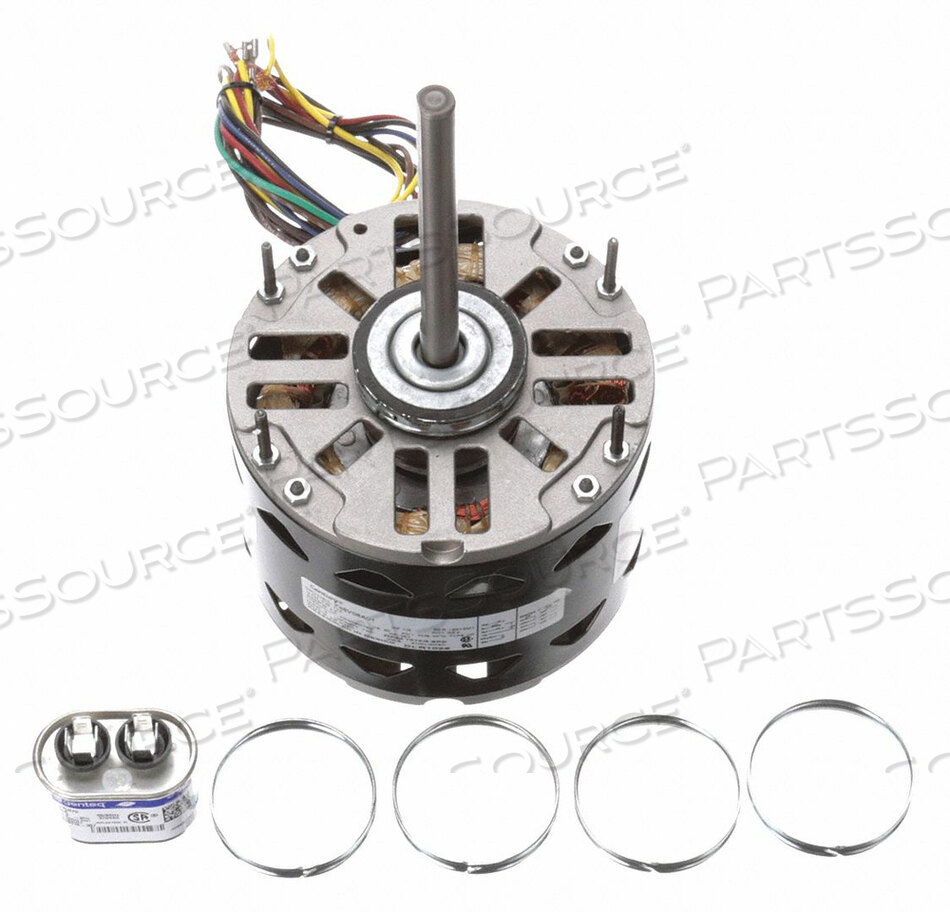

MOTOR PSC 1/3 HP 1075 RPM 115V 48Y OAO
OEM
Regal Beloit America, Inc. (Century Electric Motors)
OEM #
DLR10236
Condition
New OEM Original
Returnable
No
Application
Blowers, Fans and Air Circulators
Body Diameter
5-5/8 in
Bolt Circle Diameter
5-1/8 in
Capacitor Required
2MDV6
Duty
Continuous
Frame
48Y
Full Load Amps
4.9
HP
1/3
Hz
60
Includes
Resilient Mounting Ring
Ins. Class
B
Length Less Shaft
5-1/2 in
Max Ambient Temperature
40 Degrees C
Motor Application
HVAC/R
Motor Bearings
Sleeve
Motor Design
Permanent Split Capacitor
Motor Enclosure Design
Open Air-Over
Motor Mounting Position
Horizontal
Motor Mounting Type
Ring
Motor Service Factor
1
Motor Shaft Design
Flat
Motor Shaft Rotation
CW/CCW
Motor Sub Application
Direct Drive Fan/Blower
Motor Thermal Protection
Auto
Mounting Stud Location
Shaft End
Mounting Stud Pattern
2-9/16 in x 4-7/16 in
Nameplate RPM
1075
Number of Speeds
3
Phase
1
Resilient Ring Diameter
2-1/4 in
Ring to Ring Center
5 in
Shaft Diameter
1/2 in
Shaft Length
5 in
Standards
CSA Certified, UL Recognized
Stud Size
#8-32
Voltage
115
Voltage Compatibility
115, 120
