P/N: 8SCH158 Key Specs
Item

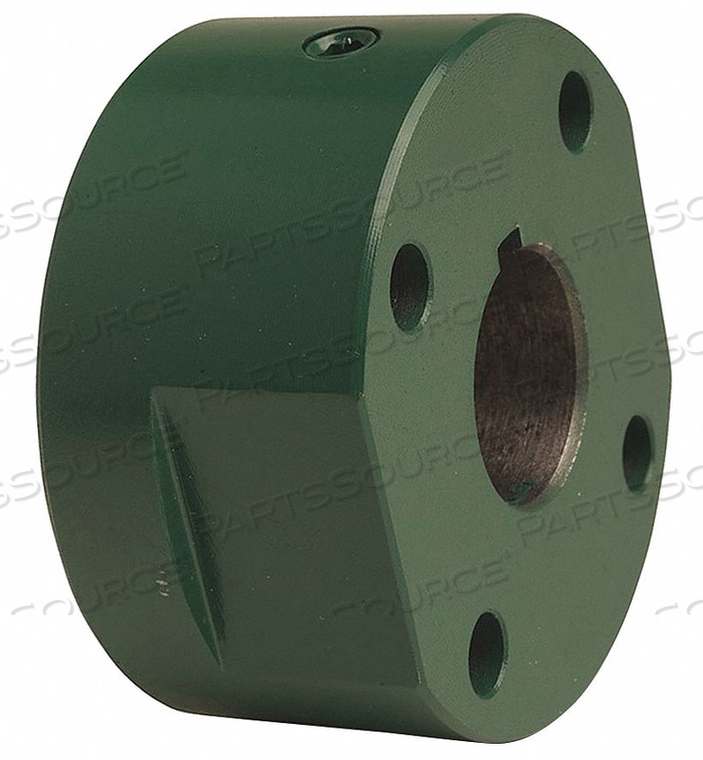

SLEEVE COUPLING SPACER HUB 1-5/8
OEM
TB Woods
OEM #
8SCH158
Condition
New OEM Original
Returnable
No
Bore Dia.
1 5/8 in
Bore Type — Couplings
Fixed Bore
Bushing Required
None
Flange Type — Sleeve Couplings
SC
Height (In.)
1.719 in
Hub Dia. (In.)
1.719 in
Ideal For
Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Item — Sleeve Coupling Flanges
Sleeve Coupling Spacer Hub
Keyway Size Type
3/8 in x 3/16 in
Length through Bore (In.)
1.72 in
Material of Construction
Cast Iron
Max. Angular Misalignment
0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Max. RPM
4,500 RPM
Outside Dia.
1.719 in
Setscrew Location
One over the Keyway
Size — Sleeve Couplings
8
Width (In.)
1.72 in
