P/N: 8SC3510 Key Specs
Item

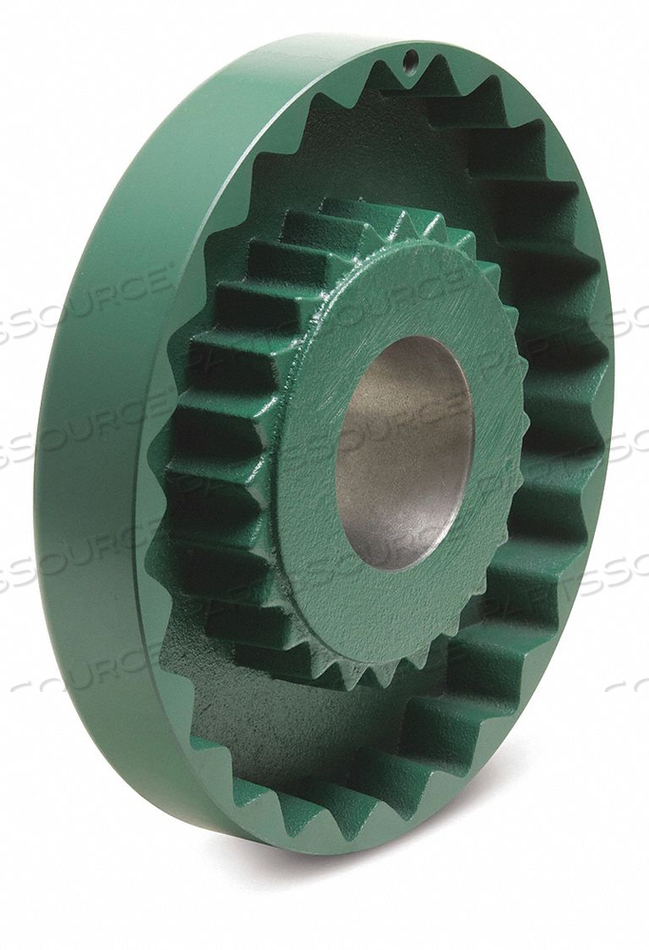

SLEEVE COUPLING SPACER FLANGE
OEM
TB Woods
OEM #
8SC3510
Condition
New OEM Original
Returnable
No
Bushing Required
None
Flange Type — Sleeve Couplings
SC
Height (In.)
5.45 in
Ideal For
Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Item — Sleeve Coupling Flanges
Sleeve Coupling Spacer Flange
Material of Construction
Cast Iron
Max. Angular Misalignment
0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Max. RPM
4,500 RPM
Outside Dia.
5.45 in
Size — Sleeve Couplings
8
Width (In.)
1.625 in
