P/N: 8S134 Key Specs
Item

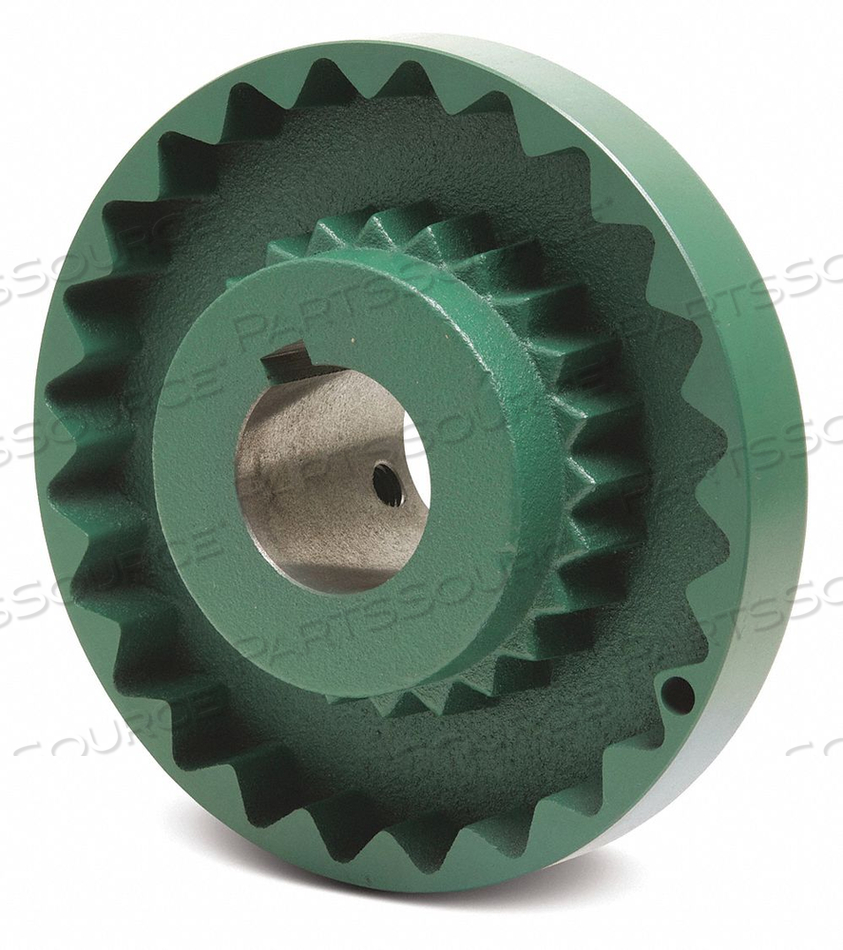

SLEEVE COUPLING FLANGE 1-3/4
OEM
TB Woods
OEM #
8S134
Condition
New OEM Original
Returnable
No
Bore Dia.
1 3/4 in
Bore Type — Couplings
Fixed Bore
Bushing Required
None
Flange Type — Sleeve Couplings
S
Height (In.)
5.45 in
Hub Dia. (In.)
5.45 in
Ideal For
Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Item — Sleeve Coupling Flanges
Sleeve Coupling Flange
Keyway Size Type
3/8 in x 3/16 in
Length through Bore (In.)
2.09 in
Material of Construction
Cast Iron
Max. Angular Misalignment
0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Max. RPM
4,500 RPM
Outside Dia.
5.45 in
Setscrew Location
One Over the Key and One at 90 Degrees
Size — Sleeve Couplings
8
Width (In.)
2.09 in
