P/N: 76-UIB-1030-S-CWB-INF Key Specs
Item

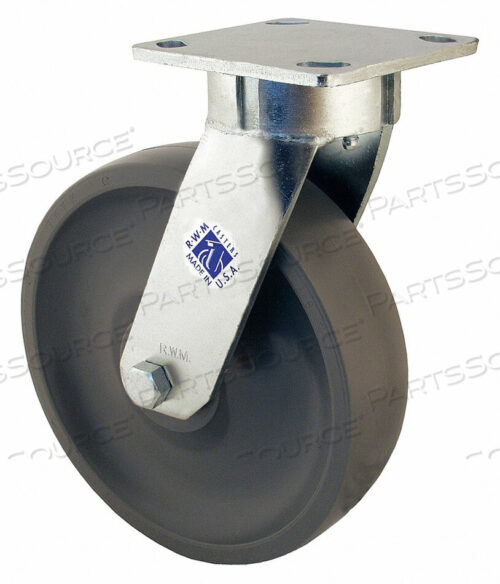

KINGPINLESS PLATE CASTER SWIVEL 5000 LB.
OEM
RWM
OEM #
76-UIB-1030-S-CWB-INF
Condition
New OEM Original
Returnable
No
Application
Aerospace Tooling, All Purpose Industrial and Commercial Casters, Automotive Assembly Lines, Body Dolly Carts, Casters, Chassis Rack Carts, Engine Dollies, Material Carts
Caster Brake Type
Face Contact Brake
Caster Frame Material
Steel
Caster Sub-Type
Swivel
Core Color
Gray
Frame Finish
Powder Coated
Includes
Complete Caster with Brake
Includes Thread Guards
No
Inside Bolt Hole Spacing
3-3/8 in x 5-1/4 in
Load Rating
5000 lb
Mounting Bolt Diameter
1/2 in
Mounting Height
12-1/2 in
Mounting Plate Bolt Hole Pattern
A
Mounting Plate Size
5-1/4 in x 7 1/4 in
Non-Marking
Yes
Number of Mounting Holes
4
Number of Wheels
1
Outside Bolt Hole Spacing
4-1/8 x 6-1/8 in
Replacement Wheel
Mfr. No. UIB-1030-12-INF
Standards
ICWM, ISO 9001
Swivel Construction
Kingpinless
Swivel Lock Type
No Lock Included
Swivel Raceway Type
Single Ball
Swivel Radius
2 in
Tread Shape
Standard
Wheel Bearing Type
Precision Ball
Wheel Core Material
Cast Iron
Wheel Diameter
10 in
Wheel Width
3 in
Wheel/Tread Color
Tan
Wheel/Tread Hardness
93 Shore A
Wheel/Tread Hardness Rating
Firm
Wheel/Tread Material
Polyurethane
