P/N: 5VLU7 Key Specs
Item

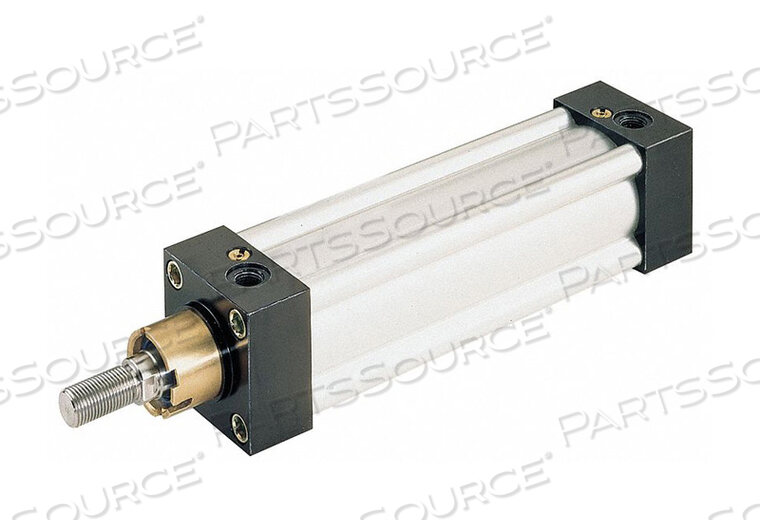

D8555 NFPA AIR CYLIN 5INBORE 10-1/2INSTROKE
OEM
Speedaire
OEM #
5VLU7
Condition
New OEM Original
Returnable
No
Air Cylinder Bore Dia.
5 in
Air Cylinder Mount
NFPA MX5/MS4
Air Cylinder Product Group
Air Cylinder
Air Cylinder Type
NFPA
Body Material
Aluminum
Bore Dia.
5 in
Cushion Type
Head and Cap
Cylinder Action
Double Acting
Cylinder Type
NFPA
End Cap Material
Anodized Aluminum
Magnetic Piston
Yes
Max. Pressure
250 psi
Mount
NFPA MX5/MS4
Overall Length
17.5 in
Piston Material
Composite
Piston Rod Material
Case Hardened, Chrome Plated Steel
Port Size
1/2 in
Rod Dia.
1 in
Rod Thread Length
1.25 in
Rod Thread Size
3/4-16 UNF
Single Acting/Double Acting
Double Acting
Standards
NFPA, RoHS Compliant
Stroke
10 1/2 in
Temp. Range
-10 Degrees to 165 Degrees F
Tube Material
Anodized Aluminum
