P/N: 4JSC35118 Key Specs
Item

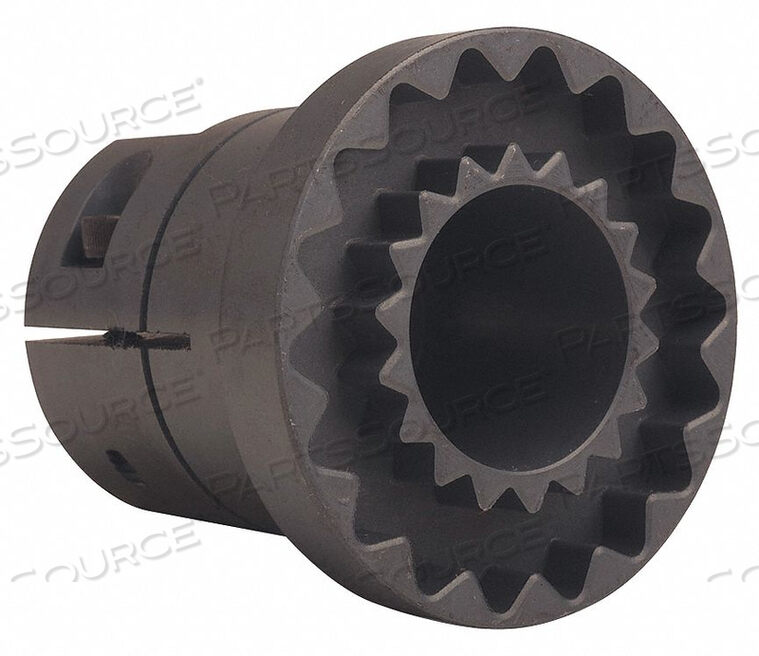

SLEEVE COUPLING SPACER HUB 1-1/8
OEM
TB Woods
OEM #
4JSC35118
Condition
New OEM Original
Returnable
No
Bore Dia.
1 1/8 in
Bushing Required
None
Flange Type — Sleeve Couplings
SC
Height (In.)
1.063 in
Hub Dia. (In.)
1.063 in
Ideal For
Applications In Motors, Pumps, Compressors, Blowers, Mixers and Conveyors
Item — Sleeve Coupling Flanges
Sleeve Coupling Spacer Hub
Keyway Size Type
1/4 in x 1/8 in
Length through Bore (In.)
1.08 in
Material of Construction
Sintered Steel
Max. Angular Misalignment
0.25 Degrees For Hytrel Sleeves, 1 Degrees For EPDM & Neoprene Sleeves
Max. RPM
7,600 RPM
Outside Dia.
1.063 in
Setscrew Location
One over the Keyway
Size — Sleeve Couplings
4
Width (In.)
1.08 in
