P/N: 49342300 Key Specs
Item

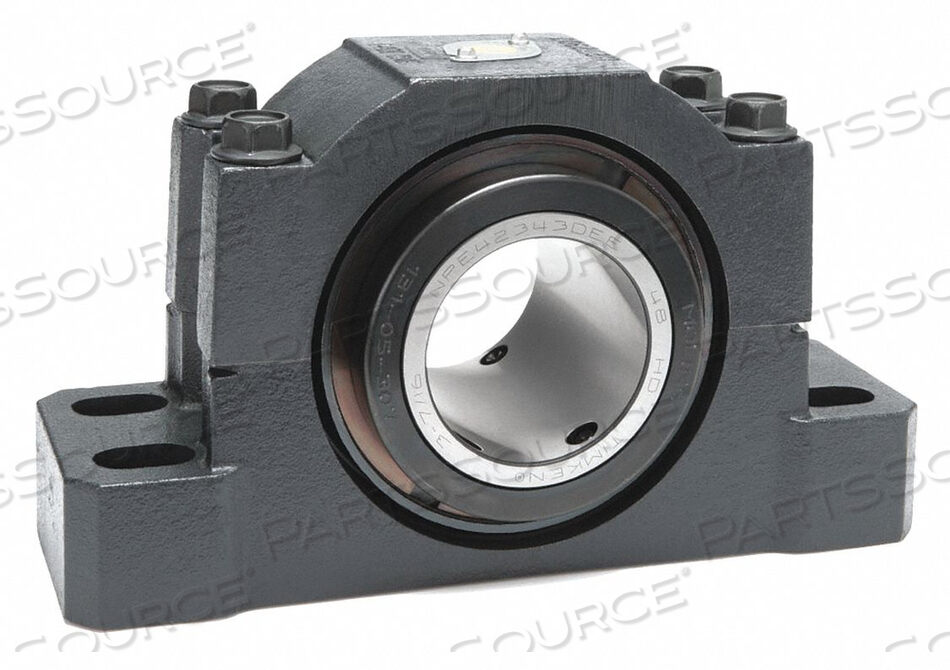

PILLOW BLOCK BEARING BORE 3 IN
OEM
Moline Bearing
OEM #
49342300
Condition
New OEM Original
Returnable
No
Bearing Housing Material Type
Ductile Iron
Bearing Insert Material
52100 Chrome Steel
Bearing Insert Type
Tapered Roller
Bearing Lubrication
Timken Lithium Complex Grease
Bolt Hole Center-to-Center
9 1/2 in
Bolt Size
5/8 in
Bore Dia.
3 in
Dynamic Load Capacity
12,300 lb
Includes
Non-Expansion Timken Type E Tapered Roller Bearing
Max. Speed
1,965 RPM
Mounted Bearing Item
Pillow Block Bearing
Mounting Surface to Shaft Center
3 1/8 in
Number of Bolts
4
Overall Height
6 13/16 in
Overall Length
11 3/4 in
Overall Width
4 1/2 in
Shaft Locking Type
Set Screw
Static Load Capacity
61,200 lb
Temp. Range
-40 Degrees to 250 Degrees F
