P/N: 326TTDBD6026 Key Specs
Item

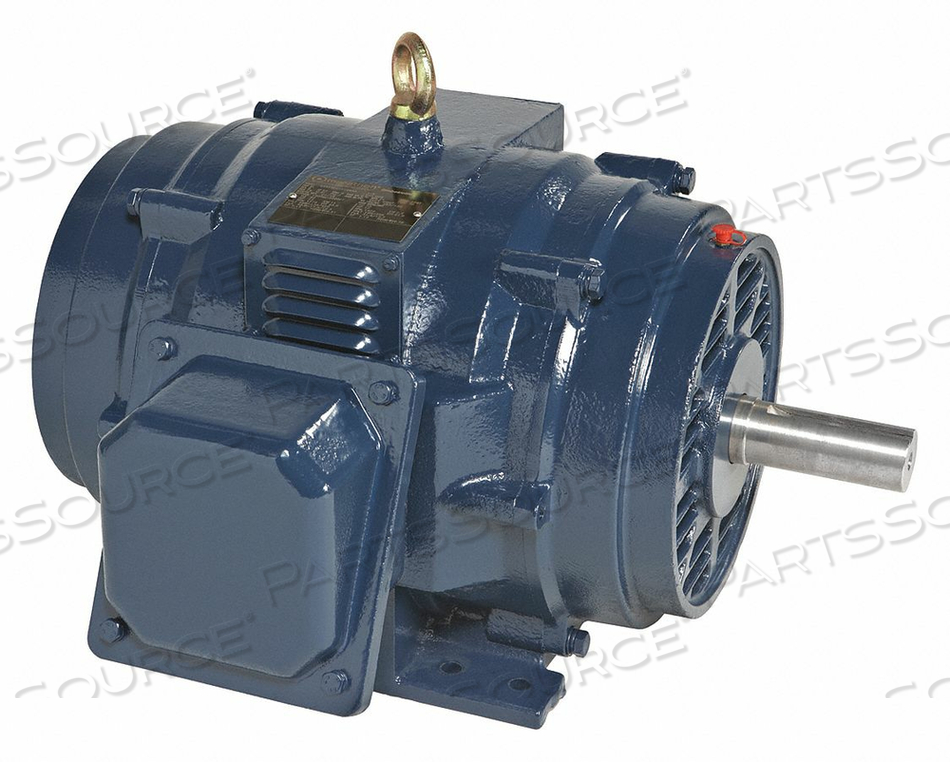

GENERAL PURPOSE MOTOR 50 HP 1780 RPM
OEM
Marathon Motors
OEM #
326TTDBD6026
Condition
New OEM Original
Returnable
No
CC Number
CC003A
Duty
Continuous
Frame
326T
Full Load Amps
118/59
HP
50
Hz
60/50
Ins. Class
F
Inverter Rated
No
Length Less Shaft
24-1/2 in
Manufacturers Warranty Length
1 yr
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Open Dripproof
Motor Frame Material
Rolled Steel
Motor Mounting Position
Horizontal
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
1780
Nominal Efficiency
94.5 %
Number of Speeds
1
Overall Length
29-3/4 in
Phase
3
Shaft Diameter
2-1/8 in
Shaft Length
5-1/4 in
Standards
UL (E49747), CSA (LR2025), CE
Voltage
230/460
