P/N: 254TTFCD6501 Key Specs
Item

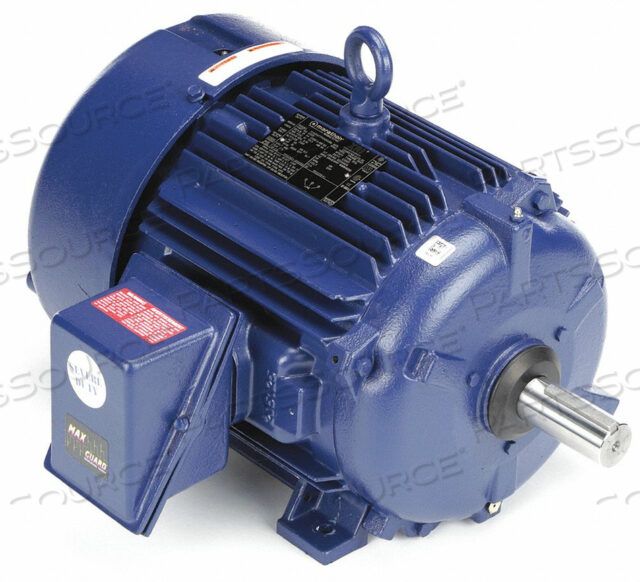

SEVERE DUTY MTR 3-PH TEFC 15 HP
OEM
Marathon Motors
OEM #
254TTFCD6501
Condition
New OEM Original
Returnable
No
CC Number
CC003A
Duty
Continuous
Frame
254T
Full Load Amps
17.5
HP
15 hp
Hz
60
Includes
Max Guard Insulation
Ins. Class
F
Length Less Shaft
19-1/4 in
Max Ambient Temperature
40 Degrees C
Motor Application
General Application
Motor Bearings
Ball
Motor Design
3-Phase
Motor Efficiency Group
NEMA Premium Efficient
Motor Enclosure Design
Totally Enclosed Fan-Cooled
Motor Frame Material
Cast Iron
Motor Mounting Type
Rigid Base
Motor Service Factor
1.15
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Thermal Protection
None
Nameplate RPM
3550
Nominal Efficiency
94.1 %
Number of Speeds
1
Overall Length
23-7/16 in
Phase
3
RPM Group
3001-3600
RPM Range
3001-3600
Shaft Diameter
1-5/8 in
Shaft Length
4-3/16 in
Standards
CSA (LR2025), UL (E49747)
Voltage
460
