P/N: 251009AW02B/310SSLXCG600 Key Specs
Item

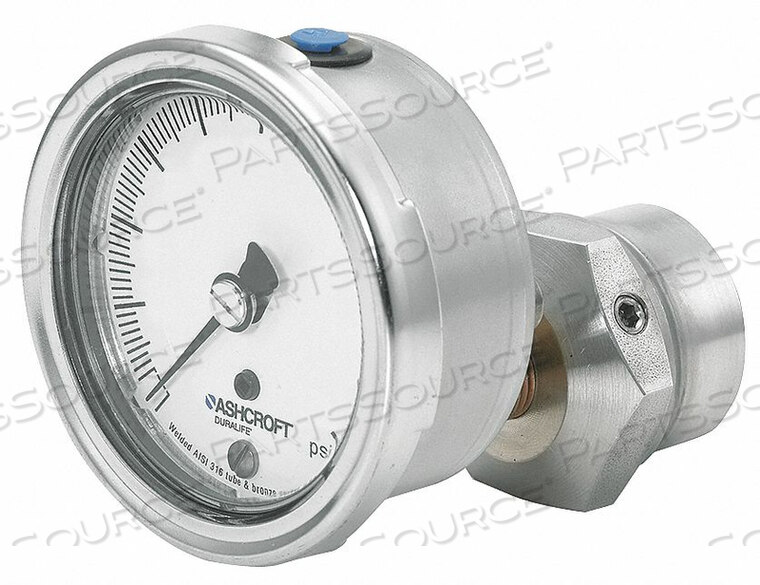

D0989 PRESSURE GAUGE 0 TO 600 PSI 2-1/2IN
OEM
Ashcroft Inc.
OEM #
251009AW02B/310SSLXCG600
Condition
New OEM Original
Returnable
No
Basic Gauge Case Material
Stainless Steel
Basic Gauge Lens Material
Plastic
Basic Gauge Sensor Material
Stainless Steel
Basic Gauge Socket Material
Stainless Steel
Basic Gauge Wetted Parts
Stainless Steel
Calibration Certificate Included
No
Gauge Accuracy
+/-1.00%
Gauge Application
General Purpose with Seal
Gauge Case Color
Stainless Steel
Gauge Case Material
304 Stainless Steel
Gauge Connection Location
Lower Back
Gauge Connection Size
1/4 in
Gauge Connection Type
MNPT
Gauge Lens Material
Polycarbonate
Gauge Nominal Dial Size
2-1/2 in
Gauge Panel Mountable
No
Gauge Primary Range Smallest Graduation
10
Gauge Primary Range Units
psi
Gauge Primary Range Values
0 to 600
Gauge Sensor Material
316 Stainless Steel
Gauge Socket Material
316 Stainless Steel
Gauge Special Options
PLUS!(TM) Performance
Includes
Seal
Liquid Filled
No
Manufacturers Warranty Length
5 yr
Operating Temperature Range
-40 Degrees to 150 Degrees F
Pressure and Vacuum Gauge Type
Pressure Gauge
Series
1009
